Trelleborg Forsheda - Model 567 -Rieber Sewer Metric
Cannot be displaced during transportation & installation. Greater joint reliability due to joint tolerance reduction. Traditional Rieber style seal for metric sewer pipes.
Most popular related searches
sewer pipe
sealing system
stormwater pipe
sewer system
stormwater
sewer integrity
stormwater design
sequencing batch reactor
The Forsheda 567 Rieber Sewer metric integrated system uses the mandrel together with the seal as a tool to form the pipe socket during the manufacturing process.
Trelleborg 567 Rieber Sewer (metric) meets or exceeds current International standards for wastewater and stormwater applications.
- Standard material is Synthetic SBR rubber, available in EPDM, Nitrile by special order.
- Hardness 55±5 Shore A
- Meets the requirements of ASTM F-477, NMX T-021 and ISO 16433
Step 1
- The spigot and socket of the pipe should be checked for damage prior to jointing.

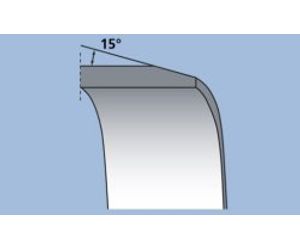

- The pipe spigot should be chamfered with an angle of 15°, taking care to remove all burrs. Both spigot and socket including the sealing ring should be free from dirt and other foreign matter.
- Lubricant should be applied evenly to the spigot end of the pipe.
Step 2

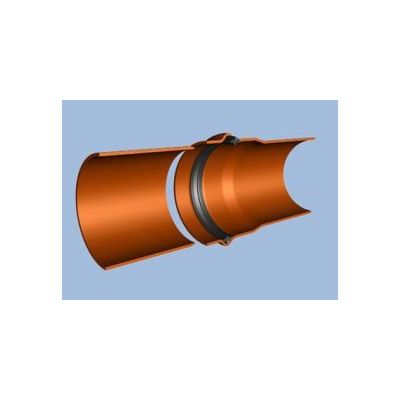

- Immediately after lubrication, the spigot should be brought into contact with the socket.
- Both spigot and socket should correctly aligned and then slide the spigot into the socket, thus compressing the seal until the joint is fully made.
