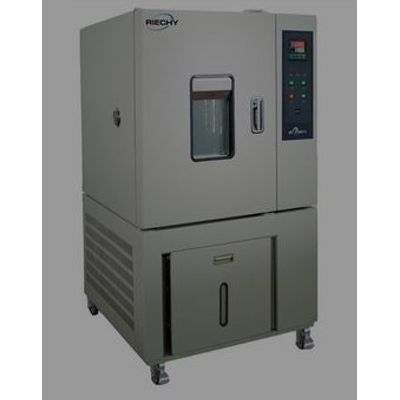

Riechy - Model GRO -High/Low Temperature Test Chamber

Structure:

• The chamber body is CNC machine tool with non-reaction handle, which is easy to operate.
• The interior of the chamber is imported high-grade stainless steel (SUS304) mirror panel, and the external of it is coating with A3 steel plate, which improves the appearance and cleanliness.
• The large viewing window is equipped with an illuminating light to keep the inside of the chamber bright, and the inside is clearly to observe at any time by using the tempered glass embedded in the heating body.
• A test hole with a diameter of 50mm, which can be used for external test power wires or signal wires.

Control System:

• Temperature control is Japanese RKC digital touch button, touch setting, digital and direct display. The output power of temperature control is calculated by P.I.D microcomputer to achieve high accuracy and high efficiency of electricity utilization. In case of malfunction, a warning signal will be tripped (imported programmable control instruments provided optionally);
• Printer provided optionally
• France-made Tecumseh full-closed compressor
• Drying filters, refrigerant flow windows, repair valves, oil separators, solenoid valves and liquid storage tanks are all imported original parts.
• Freezing system with unit or binary low temperature loop system design
• The multi-wing blower can strongly circulate the air to avoid any dead angle, and the temperature distribution in the testing area can be evenly distributed;
• The design of air circulation, the air pressure and the air speed circulating outlet meet the test standard, and also can make the temperature stabilization time fast by instantaneously opening the door;
• Temperature rising, cooling and system independence can improve efficiency, reduce test cost, increase life and reduce failure rate;
• Overtemperature of whole equipment; under phase/reverse phase of whole equipment; Overload of whole equipment; Overpressure of refrigeration unit; Timing of whole equipment;
• Other protections protects from leakage, operation instructions, automatic shutdown after failure alarm, etc.
