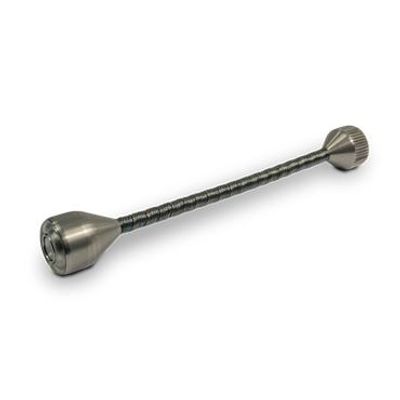

Riezler - Model RIK-1820 -Axial Camera Head for Pipe Inspections
Currently our smallest camera. Already applicable from DN 20 and in combination with the HKT-5X bendable from DN 40. Optimally suited e.g. for the inspection of weld seams, cable pipes, kitchen drains in swimming pool construction and much more.
Most popular related searches
- Operating range DN 20 - 70
- suitable for bends as of 87° / DN 40 (depending on camera head)
- Pluggable stainless steel camera head
(18 mm / 0.70 inch diameter, 20 mm / 0.79 inch length) - Weight: 30 gram / 0.07 lbs
- Waterproof up to 1 bar
- High performance cold light LEDs (6 ultra bright LEDs)
- High-resolution color camera module (480 lines)
- Wide angle lens: 90°
- Focus: fix focus (3 - 30 cm / 1.2 - 11.8 inches)
