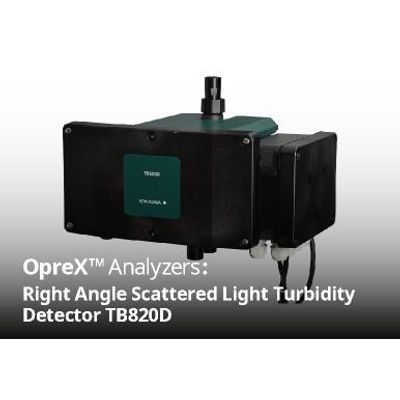

Yokogawa - Model TB820D -Right Angle Scattered Light Turbidity Detector

SHARE

The TB820D is part of the SENCOM4.0 platform family and can connect to FLXA402T. Thanks to a smart unit equipped detector, TB820D gives you more insight into the ordinary operation.

The TB820D turbidity analyzer using the right-angle light scattering method provides highly reliable measurements and uses LED as a light source.

For more information: https://www.yokogawa.com/solutions/products-and-services/measurement/analyzers/liquid-analyzers/turbidity-analyzers/tb820d/

Most popular related searches
water purification treatment
process water purification
automatic washing system
liquid analyzer
turbidity analyzer
river water
tap water
water purification
water reservoir
sample conditioning

Easy to clean cell structure, Automatic wash system, Long life time light source

  • High reliable measurement with excellent linearity and repeatability
  • Measure wide turbidity range (0-0.2 to 0-700 FNU (Light source 860 nm), 0-0.2 to 0-500 NTU (Light source 660 nm))
  • Longer life time light source by LED
  • Flat window cell structure is designed for small dead volume to prevent dirty retention
  • Diagnostics functions recommend you the appropriate maintenance time
  • Remote wash and calibration functions are available
  • Ultrasonic cleaning is available
  • Automatic 2 or 3 range switching is available
  • Can access all maintenance parts from the front panel
  • Max 20 m cable length is available between TB820D and FLXA402T thanks to digital technology

Turbidity of tap water, sewage, river water and water used in general processes

Water Purification Treatment

  • Sedimentation
  • Flocculation
  • Settling Basins
  • Clean water reservoir
  • Distributing pump
  • Distribution tank & Piping

Wastewater Treatment

  • Discharge/Reuse

Measuring method: Right angle scattered light method


Measuring Range (Turbidity standard: Formazin):

  • 0-0.2 to 0-500 NTU (Light source 660 nm)
  • 0-0.2 to 0-700 FNU (Light source 860 nm/ Compliant standard: ISO7027)

Sample Conditions

  • Temperature: 0 to 50°C
  • Flow Rate: 0.05 to 20 L/min
  • Pressure: 500 kPa max

Power Supply: 100 to 240 V DC, 50/60 Hz


Digital Communication: Modbus TCP/IP, Modbus RTU

Installation: Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)
