Edbro - Model CX Series -Rigid Truck Cylinder

• The lightest cylinder on the market providing a saving of up to 230 kg per tip
• Increased productivity with the fastest tipping cycles
• Zero downtime and minimal servicing with a fit and forget reputation you can count on
• Optimum bodybuilder turnaround time with combined ram & tank assembly, dramatically reducing installation time

• Double lip wiper seal ensures efficient lubrication of each tube and prevents contamination of the cylinder.
• Unique 5 point sealing system reduces friction for years of smooth, trouble-free operation.
• Wear rings made from non-metallic, acetal material provide low friction and long service life.
• One-piece tubes with large stop contact faces provide optimum durability for long life and reduced maintenance.
• Friction welded tube assembly increases strength and fatigue life.
• Brass slider reduces risk of scoring and damage due to side load.
• Unique clip and seal arrangement provides long life and ensures easy servicing.

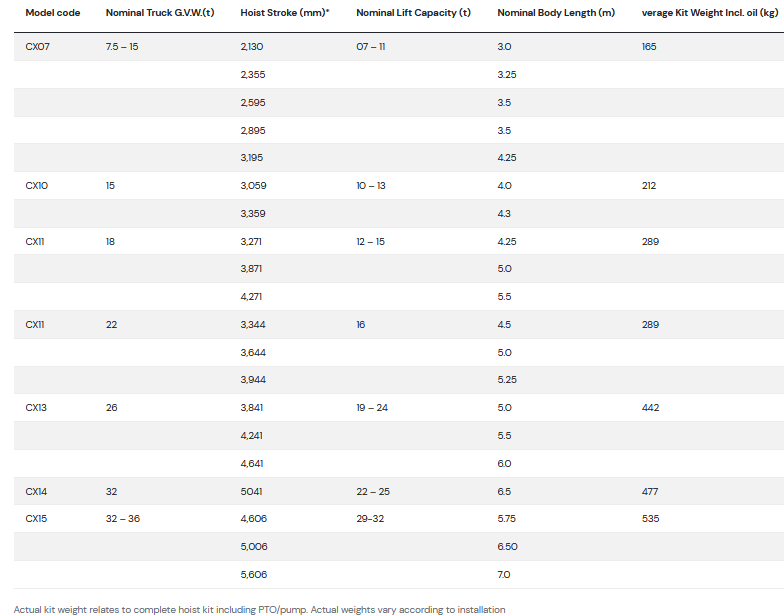

Models in the CX Series are available with lift capacities from 10 to 32 tonnes and are designed for rigid trucks with 15 to 36 tonne G.V.W.
