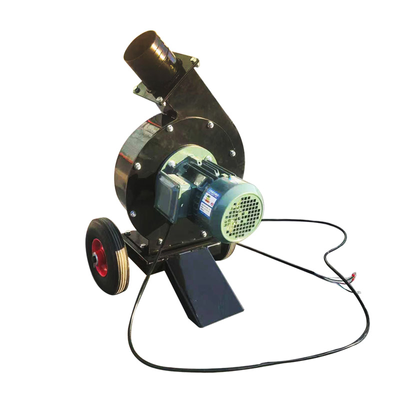

Rima - Model 240930 -Mobile Sawdust Extractor
Sawdust extractor helps you getting a neater and cleaner working environment. The extractor leads the sawdust away, reduces the amount of sawdust around the machine and in the air.
- Electrical or hydraulic drive
- Provides a cleaner working environment – reduces airborne sawdust
- Reduces the risk of overheating from the firewood processor
- Collected sawdust can be used in other applications (i.e bedding, mulch, etc.)
- Model: 240930
- Drive: Hydraulic
- Required oil flow: 15L/min
- RPM: 2800r/min
- Hose, Pressure side: Φ 100 mm, 2m
- Hose, Suction side: Φ 133 mm, 3m
- Wheel: 2pcs
- Weight: 23kg
- Model: 240930E
- Electric motor,: 1.1 kW, 3-phase
- Voltage: 400V (Optional 230V)
- Hose, Pressure side: Φ 100 mm, 2m
- Hose, Suction: Φ 133 mm, 3m
- Weight: 20kg
The 240930 can be fitted to the RM7 processor as an optional extra, at time of purchase or at a later date. It can also be fitted to other RIMA processors. It helps maintain a cleaner and safer working environment, by reducing the airborne dust and dust accumulation near the oil tank and around the tractor. The extractor creates a vacuum, pulling the sawdust away from the work area, via it’s 3m long hose.
Electrical or hydraulic drive
The 240930E sawdust extractor can be delivered with either electric (*) or hydraulic drive. The electric version is connected via the start on a electric RM7 processor, or alternatively connected to a 3-phase contact on other machines. The 240930E is delivered for 230V, but can also be delivered with a 400V connection.
The hydraulic model is powered by the tractor’s hydraulics (minimum 15 L/min.).
The 240930 is delivered with a three meters hose (Ø 133 mm) on the suction side. The pressure side is equipped with a Ø 100 mm muff for mounting a two meters hose or other solutions better suited the operator.
