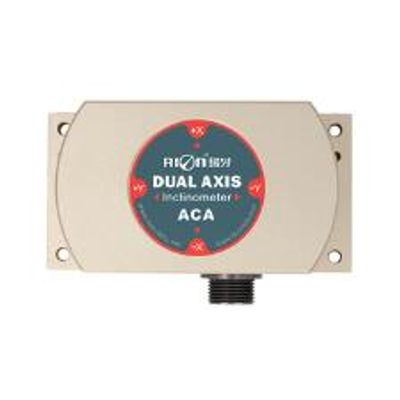

Rion - Model ACA620T-N -Voltage Inclinometer with Full Temp-Compensation
ACA610T is a high precision & full temperature compensation inclinometer with analog voltage output, high-precision 24bit A / D differential converter inside the product, to ensure the the products output voltage signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability !
- Dual axis inclination measurement
- Measure Range :±1~±60° optional
- High Resolution: 0.001°
- Temperature drift ±0.0008°/?
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85?
- Highly anti-vibration performance >2000g
- IP67 protection grade
In addition, because of ACA610T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to ±0.0008°/? ,normal temperature small measuring range the most accurate up to 0.003°, in domestic the counterparts products with absolute competitive advantage.Non-contact installation features make ACA610T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, easy to install. Newest MEMS high-technology for production , high-precision, small size, with strong ability resistance to external electromagnetic interference and to withstand shock and vibration, has been widely used in the industrial fields !
- Shell size L92×W61×H36mm
- Installation size L82×W38×H6mm
- ounting screws 4 M4 screws/2 M3 positioning pins
