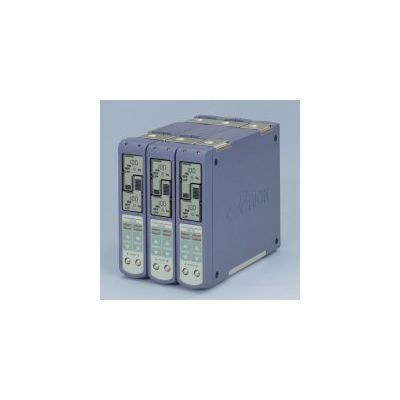

Rion - Model UV-16 -Dual Channel Charge Amplifier
UV-16 Dual Channel Charge Amplifier/Vibration Meter Unit The dual channel UV-15 can be used with a wide range of CCLD or charge-type accelerometers. Up to 16 units (32 channels) can be linked together. On-board integrators allow the direct measurement of acceleration, velocity or displacement. The UV-16 has a clear backlit display which shows level (as both numeric and a bar graph display) and important measurement parameters including whether the unit is measuring acceleration, velocity or displacement.
Most popular related searches
- Two channels with independent settings
- Wide range of CCLD and charge accelerometers supported – sensitivity range 0.1 – 99.9 mV/ms-2 and 0.1 – 99.9 pC/ms-2
- On-board integrators – measures acceleration, velocity and displacement
- 1Hz – 15 kHz frequency response ± 5% (0.5 Hz – 30 kHz 10%) for acceleration
- Standard microdot input sockets
- Analogue a.c. outputs via industry standard BNC sockets on rear panel
- Bar graph display with 100msec refresh rate
- hi-pass filter settings – OFF, 10 Hz, 20 Hz, 50 Hz
- lo-pass filter settings – OFF, 1 kHz, 3 kHz, 10 kHz
- Power supply 9 – 15V d.c. (12V nominal) via suitable adapter or Battery Unit BP-17 (powers up to 3 units)
- Resume function memorises all settings at power off and restores them at next power-on
