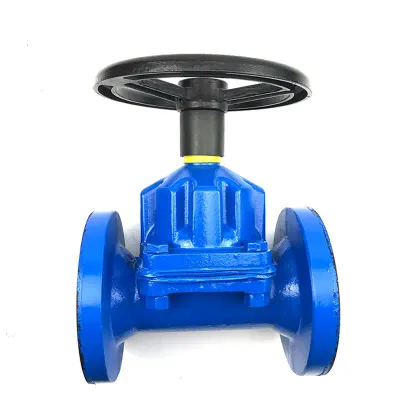

Laizhou Dongsheng Valve Co., Ltd - Rising and Non-Rising Stem Diaphragm Valves

SHARE
Diaphragm valves, often used in liquid systems, function through a 'pinching' method, employing a flexible diaphragm to control flow. These valves are particularly suited for working pressures ranging from DN50-DN125 at 1.0Mpa to DN250-DN300 at 0.4Mpa. They accommodate working temperatures between -20°C to +60°C, following EN588-1 face-to-face dimensions, and flange connections in accordance with EN1092-2, BS4504 standards. Notably, these valves are tested under DIN3230 and API598 standards and are compatible with a variety of media including cement, clay, granular fertilizers, and both fresh and sea water, besides inorganic acids and alkaline liquids. While unsuitable for high-temperature applications, their design enables efficient flow control in constrained environments, emphasizing reliability and adaptability across a multitude of industrial applications.
Most popular related searches
diaphragm valve
flow control
hazardous chemicals
demineralized water system
flow control valve
stop valve
valve testing
throttle valve
demineralized water
controlled environment
  1. Working pressure:
    1. DN50-DN125: 1.0Mpa
    2. DN150-DN200: 0.6Mpa
    3. DN250-DN300: 0.4Mpa
  2. Working temperature: NR: -20℃～+60℃
  3. Face to face: EN588-1
  4. Flange connection according to EN1092-2, BS4504 ect.
  5. Testing: DIN3230, API598
  6. Medium: Cement, Clay, Cinder, Granular Fertilizer, Solid fluid, Fresh Water, Sea Water, Inorganic acid and Alkaline Liquid etc.

Diaphragm Valves have two kinds of types, wire and full flow, which use a ‘pinching’ method to stop the valve flow using a flexible diaphragm.These types of valves are generally not suited for very high-temperature fluids and are mainly used on liquid systems.

We’ll make every effort and hard work to be superb and excellent, and speed up our steps for standing inside the rank of international top-grade and high-tech enterprises for New Style China DN300 Cast Iron Flange Rising Stem Diaphragm Valve, Welcome to visit us at any time to establish long-term business. Please feel free to contact us by email info@lzds.cn or phone/WhatsApp +86 18561878609.

New Style China GG25 Diaphragm Valve, GGG40 Diaphragm Valve, Now we have gained a lot of recognition among customers spread all across the world. They trust us and always give us reorder.

  • Can be used as on-off and throttling service valves.
  • Offer good chemical resistance due to a variety of linings available.
  • Stem leakage is eliminated.
  • Provides bubble-tight service.
  • Does not have pockets to trap solids, slurries, and other impurities. It is suitable for slurries and viscous fluids.
  • These valves are particularly suitable for hazardous chemicals and radioactive fluids.
  • These valves do not permit contamination of flow medium, thus they are used extensively in food processing, pharmaceutical, brewing, and other applications which cannot tolerate any contamination.
  • Clean or dirty water and air service applications
  • Demineralized water systems
  • Corrosive applications
  • Radwaste systems in nuclear facilities
  • Vacuum service
  • Food processing, pharmaceutical, and brewing systems
