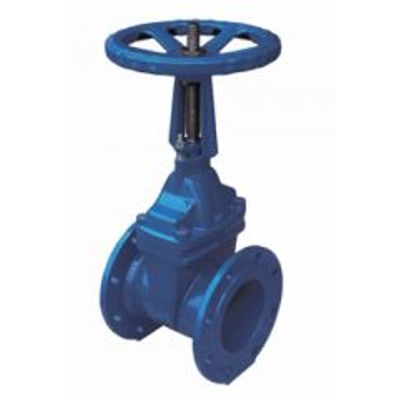

Ekoval - Model EKO2100RS -Rising Stem Resilient Seal Gate Valve
Pressure Ratings: PN10,16,25,40. Design Standard: BS EN 1171 Rising Stem. Face to Face Length: EN 558-1 Basic Series 14. Valve Test: EN 12266-1. Valve Marking: EN 19. Flange Standard: EN 1092-2. Product Group: Gate Valve. Medium: Water, Sewage.
Most popular related searches
gate valve
resilient seated gate valve
resilient seal gate valve
electric actuator
valve testing
flow control valve
position indicator
isolation valve
epoxy coating
resilient seated valve
- Valve Design According to BS EN 1171 – EN 1074-2
- Face to Face Length According to EN 558-1 Basic Series 14 (F4)
- Flanged Connection According to EN 1092-2
- Valve test According to EN 12266-1
- OS&Y Stem Type ( Outside screw and yoke )
- Soft seated. Suitable for sewage & water applications.
- EKO2100 Series Resilient Seat Gate Valves can be used as ISOLATION VALVES
- NBR Coated Wedge can be used for Nonflammable Oil Applications
- Electrical Actuator Connection is Succeeded with an Intermediary Top Flange
- This Product is WRAS Drinking Water Approved
- Application Fields and Temperatures of EKO2100 Series valves vary according to the selection of the seat.
- Body: Ductile Iron (GGG50)
- Bonnet: Ductile Iron (GGG50)
- Wedge: Ductile Iron + EPDM
- Bolts: Steel 8.8 + Wax / A270
- Stem Nuts: Ductile Iron or Brass
- Stem: 2Cr13/SS316/SS316L
- Gasket: EPDM
- O Ring: EPDM
- Bearing: Steel
- Support: Ductile Iron (GGG50)
- Inner and outer surface of the valve is powder epoxy coated (250-350 Microns) for all sizes.
- Ready For Electric Actuator
- With Electric Actuator
- With Handwheel
- With Telescopic or Rigid Extension Spindle 2Cr13 as Standard
- With Limit Switches or Position Indicators
- With Operation Cap or T-Key
