Rittenhouse - Model 200 US Gallon -Space Saver High Performance Tree Sprayer

FromM.K Rittenhouse & Sons Ltd.

SHARE

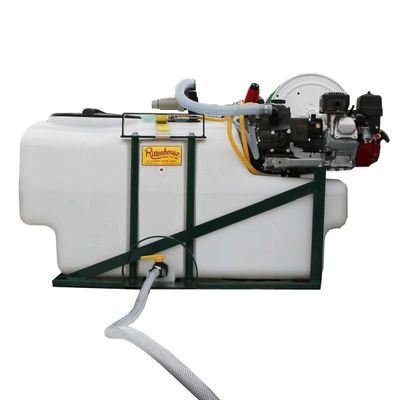

The Rittenhouse 200 US Gallon Space Saver High Performance Tree Sprayer is a compact unit that can fit across a standard short or long box pickup truck bed. When placed sideways in the back of a pickup truck, it will leave enough space for other tools or equipment. A Honda GX200 Gas Engine with manual / recoil start and a AR503 Triplex Diaphragm Pump comes standard on the sprayer, providing you with enough power and performance to reach spray heights of 35` to 40`.

Most popular related searches

pressure regulator

protective jacket

polyethylene tank

industrial tank agitator

Capable of spraying approximately 35-40` high.
200 US Gallon capacity space saver polyethylene sumped tank.
Top Feed Suction eliminates clogging.
Triple Jet agitation in tank.
Honda GX200 gasoline engine with manual start.
AR503 triplex diaphragm pump: 14.3 gpm, 580 psi.
Direct drive between pump and engine, no belts or pulleys to adjust.
Adjustable pressure regulator with oil-filled gauge.
12V Electric Standard Hannay Spray Hose Reel. This is the hose reel that comes standard on the Space Saver Sprayers. Features 1/2" full flow swivel and internal passages.
Hose reel holds 500` of 1/4" ID hose, 400` of 3/8" ID hose, 300` of 1/2" ID hose, 200` of 5/8" ID hose, or 150` or 3/4" ID hose.
Hose reel has full-flow swivel for least resistance to flow.
Includes 300` x 1/2" Yellow Poly 600 psi Spray Hose with quick coupler.
Drain hose with ball valve allows emptying of tank in controlled and environmentally friendly manner.
Spray guns not included (see Related Products).
Powder coated green frame.
The footprint of this High Performance Space Saver Tree Sprayer is 66" x 49"

HGK-15 Hose Guide for Small Hose Frame Models (9956.2200-18). This option is for rewinding your hoses neatly each time and allowing you not to get your hands dirty if manually rewinding the hose.
150` x 5/8" Green Tree Spray Hose 800 psi upgrade (A1687-10-OPT). This allows you to substitute the 1/2" diameter hose with a 5/8" diameter hose. Includes a full flow stainless steel quick coupler.
Upgrading to this option will substitute the Standard 12V Spray Hose Reel with a 12V High Flow Power Rewind Hose Reel that holds 300` of 1/2" ID hose or 150` of 5/8" ID hose. Features 3/4" full flow swivel and internal passages. With double insulated wiring harness with a heavy rubber protective outer jacket to install to the truck battery. Includes push button switch, solenoid, and circuit breaker.
