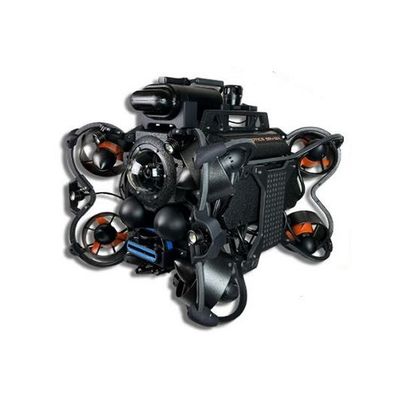

RJE Oceanbotics - Model SRV-8X Optimus ATS -Acoustic Tracking System
The SRV-8X Optimus ATS is an exceptional remotely operated underwater vehicle (ROV) engineered to detect pingers & transponders used to identify precise underwater locations. A prime example includes underwater locator beacons (ULBs) affixed to black boxes (flight recorders), commonly found on commercial aircraft. When directed towards an acoustic beacon, the ATS receives an audio signal, providing information about the exact location of the target. Oceanbotics incorporated these navigation capabilities into its SubNav-X OS software, which is known for its intuitive design and user-friendly experience. Utilizing a signal strength meter, the software precisely determines the beacon’s location by analyzing the characteristics of the audio tone.
The SRV-8X Optimus ATS is also capable of discreetly identifying sonar transponders without revealing their positions, rendering it a highly valuable resource for operations that require absolute confidentiality. With the aid of a conventional gaming controller, the operator can navigate and pinpoint the beacons and transponders with ease. This state-of-the-art technology significantly enhances sonar detection, empowering professionals in defense and search & rescue sectors.
- Rugged eight (8) thruster ROV with six degrees of movement that is depth rated to 500m (1,640ft)
- Directional acoustic receiver that locates acoustic beacons operating between 8 kHz and 45 kHz
- Subsea navigation that includes realtime tracking of the vehicle and station keeping capability
- HD video and scanning sonar to provide realtime situational awareness for the operator
- Manipulator arms to assist in recovery of assets
- up to 6 hours of operational life using hot-swappable batteries
- Custom SubNav-X OS software that integrates operations of the system and records all data for playback
