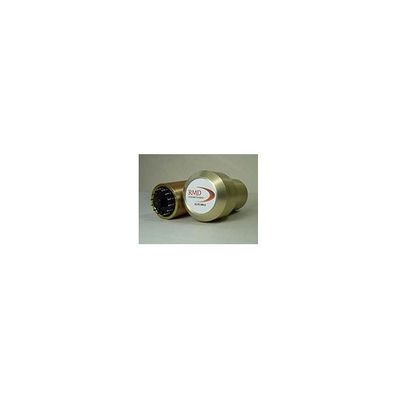

RMD - Model CLYC -Dual-mode Gamma-Neutron Scintillator
CLYC (Cs2LiYCl6:Ce) is a dual-mode gamma-neutron scintillator and the first practical detector for use as a replacement for both medium resolution gamma-ray detectors and Helium-3 proportional counter tubes for neutron detection. The ease of using Pulse Shape Discrimination (PSD) for neutron detection, combined with better gamma-ray resolution than Sodium Iodide (NaI) or Caesium Iodide (CsI), make the CLYC detector an ideal solution for several classes of handheld instruments, including Personal Radiation Detectors (PRDs), Spectroscopic Personal Radiation Detectors (SPRDs), and Radioisotope Identification Devices (RIIDs).
Most popular related searches
personal radiation detection
radioisotope detection system
gamma detection system
neutron detection
radiation detection system
gamma ray
personal radiation
radioisotope detection
caesium iodide
radiation spectroscopy
- Material: Cs2LiYCl6:Ce
- Melting Point: 640°C
- Density: 3.31 g/cm3
- Crystal Structure: Cubic
- Cleavage planes: None
- Water Solubility: Hygroscopic
- Refractive Index: 1.81 ± 0.037 @ 405 nm
- Coefficient of Thermal Expansion: 34.34×106/°C @ 30°C
- Emission Spectral Range: 275 – 450 nm
- Peak Scintillation Wavelength: 370 nm
- Decay Constants (CVL. Ce3+, Ce-STE): 1 ns, 50 ns, 1000 ns
- Scintillation Light Yield: 20,000 ph/MeV
- GEE for Thermal Neutrons: 3.2 MeV
- X-ray Absorption Coef. at 100 KeV: 3.97 cm·1
- X-ray Absorption Coef. at 662 KeV: 0.251 cm·1
- Radiation Length: 3.42 cm
- Heat Capacity: 0.379 J/(g*K)
- Thermal Conductivity: 0.0067 W/(cm *K) at 50°C
Size
- 25mm (1″) diameter/25mm (1″) long cylinder
- 38mm (1.5″) diameter/38mm (1.5″) long cylinder
- 50mm (2″) diameter/50mm (2″) long cylinder
- 75mm (3″) diameter/75mm (3″) long cylinder
- 75mm (3″) diameter/101mm (4″) long cylinder
