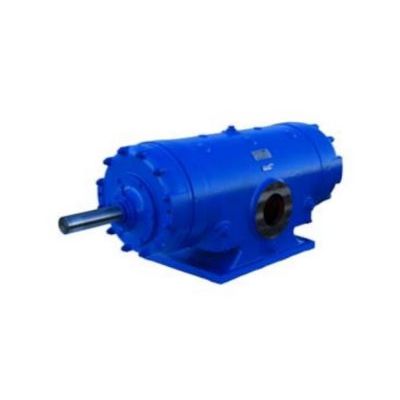

Ro-Flo - Model 7D -Compressor

Inlet Connection 3` ANSI Class 150 Flat Face Flange.Outlet Connection 3` ANSI Class 150 Flat Face Flange.Operating Speed Range 690 rpm through 1465 rpm.Maximum Allowable Working Pressure 80 psig  (5.5 barg).Maximum Allowable Operating Temp 350°F  (176°C).Shaft Seal Single face mechanical or double bellows.Bearings Steel cage, Alloy steel rollers and races (no yellow metals).Lubrication Once through oil injection system - 7 points (by others).Drive Type Direct couple or belt driven, suitable for VFD.Shaft End 1.625` diameter at coupling
