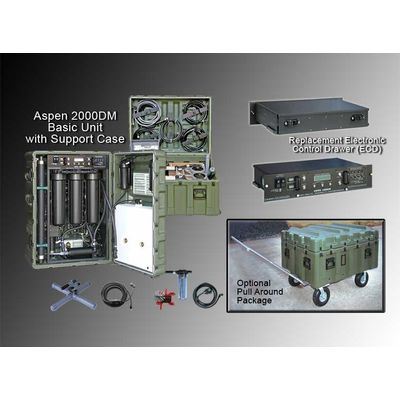

Aspen - Model 2000Dm -Ro / Sea Water Systems
FEATURES: Quick Setup and Breakdown. Easy to Operate. Low Maintenance. Low Energy Consumption. Compact, Space Saving Design. Automatic Controls with Auto-Flush. Patented Energy Recovery Device. Variable Recovery Rate. High Flow, Low-Energy Membranes. 1-Year Limited Warranty. Made in the U.S.A..
- Gallons Per Day (Fresh/Brackish) *2000+@77°F
- Gallons Per Day (Sea Water) 1500+@77°
- Weight (approx.) 420 lbs
- Input Voltage: AC 100 to 260, 50/60 Hz
- Input Voltage: DC 24-28
- Inlet Water Connection 3⁄4” Cam-Lock
- Reject Water Connection 3⁄4” Cam-Lock
- Outlet Water (1⁄2” hose) 3⁄4” Cam-Lock
- Dimensions (in.) 48.5 x 36 x 26
- Elements (Qty) 3
- Element Size (in.) 2.5 x 40 (2540)
- Boost Pump 1⁄3HP
- Feed Pump 1⁄2 HP
- Injection Pump 3⁄4 HP
- Recovery Up to 39%
- Maximum TDS Feed Water 50,000 ppm
- Nominal NaCl % Rejection 99.4%
- pH Range 2-11
- Maximum Operating Pressure 1,000 psi
- Maximum Pressure Differential across pre-filters 25 psi
- Pressure Regulation Automatic
- Maximum Boost Pressure 50 psi
- Temperature Range 113°F/45°C Max 33°F/5°C Min
- Chlorine Tolerance < 0.1 PPM Max
- Maximum Feed (GPM) 4.0
- Max Power Consumption 1200 Watts
- Average Power Consumption 900 Watts
Aspen Electronic Control System with Digital Display, Motor Speed Controllers, Pre-filter Status, and High/Low Voltage Indicator/Alarm, Permeate Flow Sensor, Automatic Salinity Sensor Diversion Valve, Feed Pressure Sensing, Strainer Clog Auto- Shutdown, Automatic Flush Cycle
Membrane: Three-2.5”x40” TFC sea water reverse osmosis membranes
Pumps: (1) Self-priming 0-50 psi variable speed boost pump, (2) 150 psi max rotary vane feed pump, (3) 1200 psi triplex injection pump, Pressure intensifier/energy retention device
Frame: Light weight, corrosion-resistant aluminum
Pre-Filtration: One sea strainer on inlet float, One 540 micron external case mounted mesh strainer, One 50 micron 4.5”x20” pleated filter, Two parallel 3 micron 4.5”x20” pleated filters. Activated carbon cartridge for chlorine removal.
High Voltage Electronic Pretreatment
Post Treatment: One UV sterilizing system, One 10” Carbon Block Activated Carbon Permeate Treatment Device
Internal Flush Tank holds 15 gallons
Cases: Military grade roto-molded polyethylene
*Permeate (product water) flow rate is affected by feed water salinity and temperature
