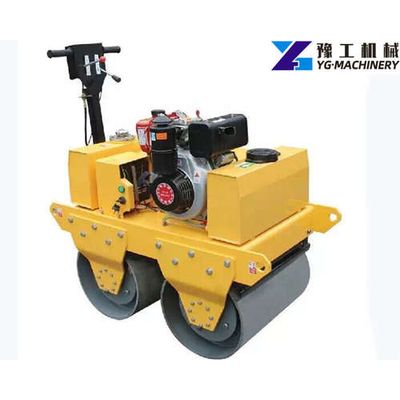

YG - Model road -Road roller machine
Road roller machine is also called hand road roller or walk-behind road roller. At present, there are three types of road roller compactor: walk-behind single-wheel rollers(hand-push single drum road roller). Walk-behind two-wheel rollers(hand-push double drum road roller), Ride-on road roller machines. There are two kinds of engines: diesel engines and gasoline engines.
| Model | FVR-850 | FVR-880 |
| Power | 6.0HP/3600rpm | 25HP/20HP |
| Walking speed | 0–4Km/h | 0-5Km/h |
| Gradeability | 0.3 | 0.3 |
| Water tank volume | 15L | 60L |
| Fuel tank capacity | 3.6L | 19L |
| Start method | Electric | |
| Steel wheel size | 700*560mm(forward)500*426mm(back) | 740*530mm(forward)800*530mm(back) |
| Vibration frequency | 70Hz | |
| Exciting force | 28KN | 32KN |
| Engine | Air-cooled 4-stroke, OJV, single-cylinder | Water-cooled 4-stroke, single-cylinder/air-cooled 4-stroke, single-cylinder |
| Driveway | Hydraulic | |
| Vibration | Mechanical transmission, electromagnetic clutch | |
| Weight | 750kg | 1000KG |
YG Machinery mainly produces small construction machinery such as small road rollers, hand-held road rollers, car road rollers, one-way small plate compactors, two-way small wacker plates, etc. YG road roller for sale is small in size, compact in structure, easy to transport, powerful in work, and high inefficiency. Contact us to get a new road roller price right now.
A small road roller can also be used with a heavy road roller. The roller is equipped with an extra-large water tank to reduce the trouble of water replenishment. Thereby increasing the continuous working time of the equipment. The adjustable and foldable operating handle brings a comfortable operating environment to the operator. In addition, it is convenient for transportation or storage after folding.
