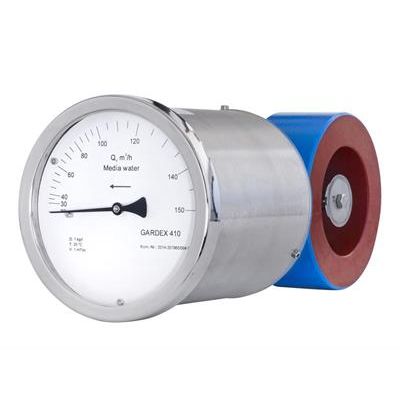

Mecon Gardex - Robust Baffle Flow Meter for Flexible Directions of Flow
FromMecon GmbH
The Gardex flow meter is a robust measurement and monitoring device. It is equally suitable for liquid and gas measured media and can be used for any direction of flow. The measurement is shown on a scale and can be provided optionally via a contact switch and electric output.
Most popular related searches
flow meter
air conditioning
chemical building
corrosion protection
gas monitoring
water corrosion protection
flow monitoring
corrosive liquid
water protection
water monitoring
Applications:
The Gardex baffle plate flow meters are suitable for measuring a wide range of liquids and gases in closed pipelines due to their all-metal design.
The devices are particularly suitable for measuring:- Water
- Liquids
- Corrosion protection agents and lubricants
- Saturated and overheated steam
- Industrial gases
- Chemicals
- Building services equipment, air conditioning, heating
- Oil and gas
- Very robust design
- Product scale for liquids and gases
- Simple installation with sandwich structure
- Robust construction
- Can be equipped with a limit contact and potentiometer
- Suitable for flexible directions of flow
- Liquid temperatures up to max. +250 °C
- DIN EN 1092-1: DN 25 – DN 400
- ANSI B16.5: 1" – 16"
- Measuring ranges : Liquids¹: 2,0 – 2.261 m³/h
- Gases²: 60 – 68.065 m³/h
- Accuracy class : ± 2 % of URV
- Pressure limits : max. 16 bar
- Temperature limits : -20 °C to +250 °C
- Flow directions :
- vertically upwards
- horizontally from left to right
- horizontally from right to left
- vertically downwards
- Process connections : DIN EN 1092-1: DN 25 – DN 400, ANSI B16.5: 1“ – 16“
- Options :
- Magnetic spring contact(s)
- Inductive contact(s)
- Current output 4 – 20 mA
