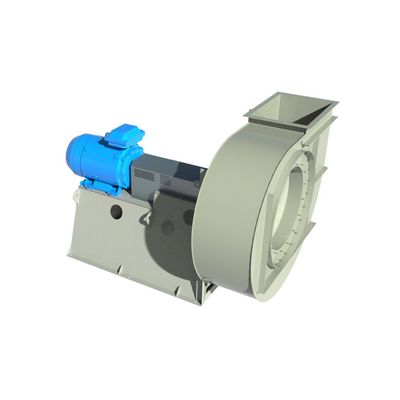

SAVIO - Model SRL N8 Series -Robust Low Noise Industrial Fans
The SRL N8 series is crafted to ensure maximum durability and minimal noise emissions. These high-efficiency industrial fans feature a single impeller and suction design, engineered with precision for reliable performance in various industrial settings. The innovative coupling mechanism between the fan and motor, utilizing a flexible coupling, significantly reduces axial and radial forces, thereby extending the operational lifespan of the motor. These fans are also adaptable to meet ATEX standards for potentially explosive environments up to zone 1/21, ensuring safe operation in demanding conditions. Primarily used for the conveyance of fumes, dust, and air mixtures, these robust fans cater to diverse industrial applications, offering unmatched efficiency and reliability in fluid dynamics processes.
Fans with single impeller and single suction.
Set of fans designed to obtain maximum robustness with low noise levels. In addition, the coupling between fan and motor by means of flexible coupling eliminates axial and radial thrusts on motor mounts, ensuring the motor long operating life.
High efficiency fans.
On request they can be manufactured in ATEX version up to zone 1/21.
FLUID:
Conveyance of fumes and dust, mixed with air.
- Pressure range (mBar): 23 ÷ 110
- Flow rate range (m3/h): 9.600 ÷ 180.000
- Max. inlet fluid temperature (°C): 350°C
- CONSTRUCTION
- Impeller type: In welded steel, with backward curved blades
- Fan casing: High thickness steel with folded joint
- Execution: Direct drive - Execution N8
- Finish: RAL 7038 standard painting
