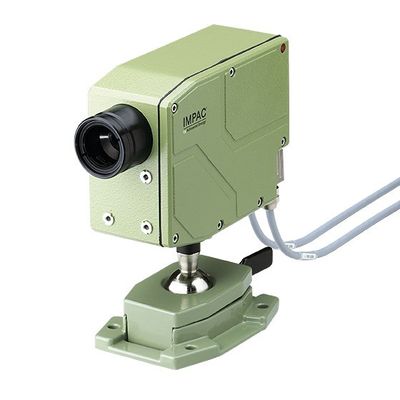

Impac - Model IS 12 and IGA 12 Series -Robust Pyrometers for Non-Contact Temperature Measurements
Very robust high-end pyrometers for measurements on metals, ceramics, graphite etc. Various optics and integrated scanner option available. Temperature ranges between 250 and 3500 °C. The Impac® IS 12 and IGA 12 series, offering high precision, swift response, and fully digital operations, are ideal for non-contact temperature measurements on metals, ceramics, graphite, and other materials, within a range of 250 to 3500 °C. The series also includes special versions with integrated scanners (IS 12-S and IGA 12-S), which enable adjustable beam movement up to 4°. What`s more, the IS 12-Al and IS 12-Al/S have been specifically crafted for measuring temperatures on aluminum.
Most popular related searches
non-contact temperature monitoring
contact temperature monitoring
temperature monitoring
pyrometer
pyrometer measurement
metal thickness monitoring
alignment laser
laser alignment
- Fixed and focusable optics
- Switchable interfaces RS232 or RS485 (IS 12, IS 12-S, IGA 12, IGA 12-S, IS 12-Al)
- Built-in digital display (IS 12, IS 12-S, IGA 12, IGA 12-S, IS 12-Al)
- Short response times:
- < 1 ms (IS 12, IS 12-S, IGA 12, IGA 12-S)
- < 1.5 ms, adjustable up to 10 s (IS 12-AI)
- 10 ms, adjustable up to 10 s
- Small spot sizes
- Achieve extremely high accuracy and repeatability
- Optimally match instruments to the right applications
- Select parameters via keys or directly via push buttons
- Achieve exactly alignment of the pyrometers with a thru-lens view finder or laser targeting light
- Digitally and quickly process signals
- Operational temperature range (°C): 250 and 3500 °C (17 ranges in between)
- Spectral Range (µm): 0.7 and 1.8 (2 ranges in between)
- Measurement Uncertainty (°C): From 0.3% oR + 1 °C
- Optics (mm): Fixed optics, Focusable optics
- FOV (minimum spot size) (mmm): Min 900:1 (0.1)
- Alignment / Sighting: Laser targeting or through lens sighting
- Interface / Output (mA): 0/4 to 20 mA
- Exposure Time t90 (ms): 1 ms
- Ambient Temperature (°C): 0 to 70
- Resolution (°C): 0.1
- Display: Built-in 5 digit LED display, additional function LEDs
- Protection Class: IP65 (according to DIN 40 050)
- Emissivity: 0.100 to 1.000 in 0.1% steps
- Weight (kg): 2.2
- Housing: Alu die-casting
- Connection: 12-pin connector
- Operating Position: Any
- CE-label: According to EU directives about electromagnetic immunity
- Isolation: Power supply, analog output, and digital interface are galvanically isolated against each other
- Wavelength Repeatability (pm): 0.1% oR + 1 °C
