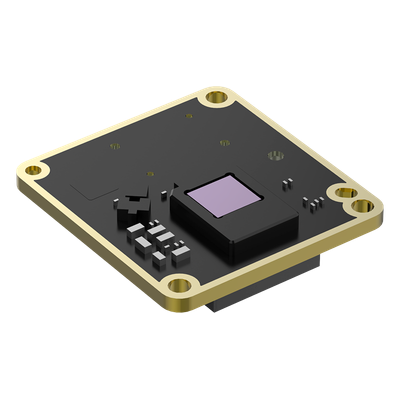

ROCIR - Model ROC212W -Uncooled Infrared Detector
FromROCIR
The ROC212W uncooled infrared detector offers a resolution of 256x192 with a 12μm pixel pitch and wafer-level packaging technology. Its compact size, optimized detection performance, and excellent cost-efficiency make it ideal for a wide range of applications in consumer electronics and emerging markets.
- Sensitive Material : VOx
- Package : Wafer-Level
- Resolution : 256×192
- Pixel Size : 12μm
- Spectral Response : 8μm~14μm
- Typical NETD : ﹤40mK
- Output Signal : Built-in 14 bits ADC
- Thermal Time Constant : ﹤12ms
- Max. Frame Rate : 50Hz
- Power Consumption : ﹤75mW
- Size(mm) : 10.53×7.44×1.45
- (Without Interface)
- Weight(g) : ﹤0.5
- Operating Temperature : -40℃ ~ 85℃
