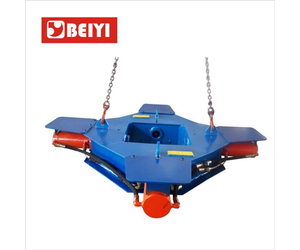

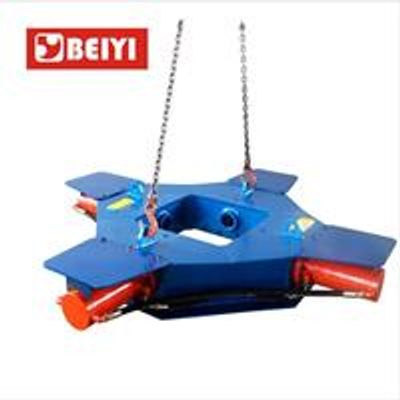

lydite - Model BY-PB350S -Rock Pile Cutting Machine Square Concrete Pile Breaker Pile Cutter
Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination. Hydraulic Pile Breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from250- 2500mm and hydraulic square pile breaker is suitable for square pile from 250-650mm. wxbychina@163.comMost popular related searches
| Max.Cylinder required | 20L/min | Max.Cylinder Trip | 200mm | Max.Thrust | 20KN |
| Max.Hoist Capacity | ≤300mm | Max.Cylinder Pressure | 30MPa | Machinery Tonnage | BYP350S:≥15t BYP500S:≥20t BYP600S:≥23t |
| Cut Pile Dia | BY-PB350S: 300mm-350mm | BY-PB500S: 250mm-500mm | BY-PB600S: 250mm-650mm | ||
Total Weight | BYP350S: 0.78T | BYP500S: 0.78T | BYP600S 1.2T |
