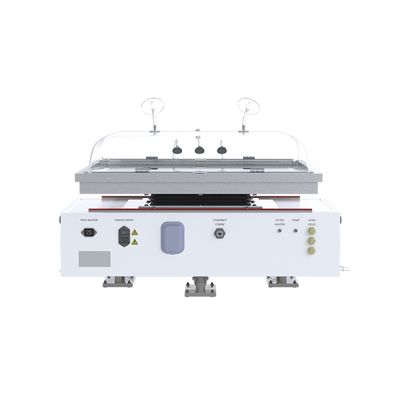

AES Deluxe BioRocker - Rocking Bioreactor Systems
The Deluxe BioRocker System is engineered to deliver reliable and efficient solutions for biopharmaceutical research and process development, specifically designed to support the growth of viable cells in various applications including cell therapy, gene therapy, and clinical manufacturing. It features integrated pumps to minimize lab space usage, a functionally closed system to mitigate contamination risks, and advanced sensors for optimal pH and DO control. Moreover, it offers remote process monitoring through customizable settings for streamlined bioprocess management and adheres to GMP standards and 21 CFR Part 11 compliance for regulatory conformance. Optional integrated load cells and HMI screens enhance its adaptability. AES Rocker Bags, compatible with this system, come in 20L and 50L volumes, made from a robust film structure that ensures clarity and sterility, meeting ISO and USP safety standards. The system is adaptable for both suspension and adherent cultures, enhancing its utility in modern biotech laboratories.
- Compact Footprint: Integrated pumps within the base unit eliminate the need for a separate pump tower, maximizing valuable lab space.
- Advanced pH and DO Capabilities: AES Rocker Bags with built-in optical spot sensor for pH and DO to ensure precise control of the culture environment, enhancing cell growth and viability.
- Functionally Closed System: Reduces contamination risks, ensuring safe and reliable cell culture processes essential for clinical and research applications.
- Automated Process Monitoring: Remote control capabilities with automated alerts and customizable settings allow for efficient and reliable bioprocess management, saving time and reducing manual oversight.
- Regulatory Compliance: Designed to align with GMP standards and 21 CFR Part 11 compliance, providing confidence in navigating stringent regulatory requirements.
The Deluxe BioRocker provides a closely monitored and highly controlled environment for the growth of viable cells to densities suitable for cell therapy research, process development, and clinical manufacturing operations. Its flexible design accommodates various cell types and culture conditions by adjusting the rocking platform’s motion, speed, and angle. Ideal for both suspension and adherent cultures, the Deluxe BioRocker supports processes including cell culture expansion, fermentation, cell therapy, gene therapy and bioprocessing & manufacturing. The functionally closed system minimizes contamination risk, and automated process monitoring with remote control capabilities ensures precise and efficient operation.
- Rocker Speed: 2 to 30 rocks/min ±1 r/min
- Rocker Angle: 2° to 12° ±1.5°
- Tilt Motor Operational Temperature: 0° to 85°C
- Tray Heater Operational Temperature: 0° to 60°C
- Tray Heater Power Consumption: 250 W
- Temperature Element Operating Range: -50°C to 200°C ±0.2°C
- Vent Filter Heater: User Configurable Duty Cycle
- pH Monitoring: (1) Optical pH Sensor
- DO Monitoring: (1) DO Sensor
- On-Board Pumps: (2) Pumps with Bi-Directional Stepper Motors
- Mass Flow Controllers (MFC): (3) MFC for AIR, O2, CO2
- MFC Instrument Range: 0.003 – 50 SLPM (configurable)
- Total Load Cell Capacity: (3) Load Cells: 150 kg | 330 lbs*
- Power Supply: U.S.: 110 to 120 VAC, 60 Hz, 6.7 A; International: 230 VAC, 50 Hz, 3.4 A
- Power Consumption: 804 W
Elevate your bioprocessing with AES Rocker Bags. Available in 20L and 50L volumes, these bags integrate seamlessly into your workflow with convenient disc port connectors. Sterilized via gamma ray radiation and packaged in double-layer PE vacuum bags, they ensure unmatched sterility and purity. The cutting-edge CellBios CSF51 film structure offers excellent clarity and transmittance, while compliance with ISO and USP standards ensures safety and reliability. Ideal for scientists, engineers, and procurement decision-makers, AES Rocker Bags deliver exceptional performance and reliability in a Class 7 Clean Room environment.
- Film Material: CellBios CSF51: Ultra-Pure PE/EVOH//Ultra-Pure PE (liquid contact layer)
- Environmental Requirement: Class 7 Clean Room Environment
- Film Thickness: 0.325 mm ±0.05
- Bag Volume: 20L or 50L
- Sterilization Method: Gamma Ray Radiation (25 – 40 kGy)
More details are available in the technical brochure
The Deluxe BioRocker is designed to meet the rigorous demands and standards required in regulated environments. It is GMP compliant and can be incorporated to meet 21 CFR Part 11 compliance regulations.
The AES Rocker Bags used with the system adhere to stringent quality and safety standards, including ISO 10993 and USP testing for hemolysis, cytotoxicity, pyrogen, implantation, irritation, systemic toxicity, bacterial endotoxins, particulates, microbial immersion, and biological reactivity. This ensures the highest levels of safety and reliability for biopharmaceutical applications.
Customizable for Your Bioprocess Needs
The Deluxe Biorocker can be tailored to meet the specific requirements of your bioprocess. Whether you need custom sizes, configurations, or features, we work closely with you to ensure this rocking bioreactor system aligns with your needs.
Seamless Integration for Your Lab or Facility
The Deluxe BioRocker is designed for seamless integration with your DCS. This compatibility allows for easy connection and communication with existing automation and control systems, enabling centralized monitoring and control of your operations.
Aftermarket Services & Training
Comprehensive aftermarket services and training is available to ensure you get the most out of your rocking bioreactor system. Our team provides ongoing support, maintenance, and training to keep your operations running efficiently and effectively.
Fabricated in the USA
All rocking bioreactor systems are manufactured in the USA, adhering to the highest standards of quality and precision. This ensures reliability and consistency in every unit, providing you with a dependable solution for your bioprocess needs.
