Cook Compression - Rod Rings

Continued development, backed by experienced applications support, results in custom seal ring, pressure breaker, vent ring, and purge/buffer ring solutions that consistently outperform traditional approaches. A complete selection of materials, from bronze to high-performance non-metallics, dramatically improves packing ring durability in even the most demanding applications.

Pressure packing rings serve a critical role in reciprocating compressors, providing a dynamic, mechanical seal around the piston rod and against the packing case cup to prevent leakage from the compressor cylinder.Compressor reliability, efficiency, run times and operating cost-effectiveness can all be significantly improved by optimizing rod ring applications.

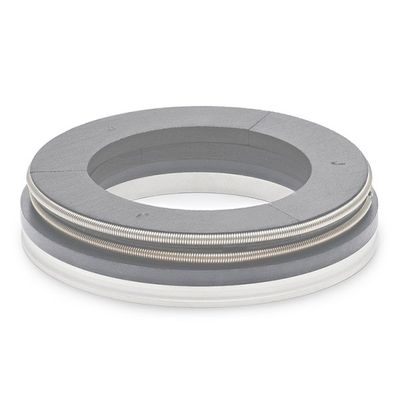

Seal rings stop or restrict the flow of gas out of the cylinder and into the vent or distance piece. Standard seal rings typically use a radial cut and tangent cut ring, plus a back-up ring. Potential leak paths are blocked by ring overlap. While they are designed to provide a complete seal, all standard rings allow small amounts of leakage. Therefore, seal rings are typically arranged in series to sequentially reduce gas pressure across the packing case. For operations requiring near-zero leakage, Cook Compression offers advanced low-emissions rod packing. This patented technology incorporates gapless ring designs to eliminate leak paths and reduce fugitive emissions below measurable limits.

Cook Compression applies the latest advances in polymer science to provide superior durability and optimum performance characteristics for rod packing rings. A wide range of proprietary PTFE- and PEEK-based materials, as well as specialty PPS and polyimide materials, are available to fit the specific requirements of your application and operating environment. With in-house precision blending capabilities, Cook Compression uses reinforcements, fillers and additives to enhance specific material properties and deliver high-performance sealing and lasting reliability.

• The broadest line of sealing products
• More products in more applications than any other sealing products provider
• Precision manufacturing
• In-house material compounding and compression molding
• Ongoing materials development, including cooperative programs with renowned universities
• In-house Innovation Lab and test compressors
• Extensive engineering and field support
