Fude - Model organic fertilizer -Roll granulator

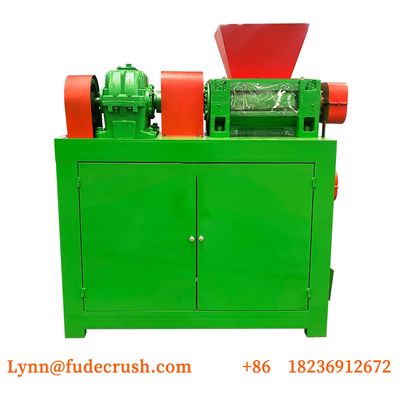

The roller squeezing granulator is mainly composed of components such as an electric motor, belt pulley, reducer, active shaft, passive shaft, feeding hopper, roller (pressure roller), crushing and screening workshop, etc. Its working principle is that the belt and pulley are driven by an electric motor, transmitted to the active shaft through a reducer, and synchronized with the passive shaft through a split gear. The material is added from the feeding hopper, extruded by rollers, demolded and pelletized, and then transported through a chain to the crushing and screening workshop for screening and separation of finished particles. Subsequently, the finished granules are mixed with new materials and then granulated. With the continuous rotation of the electric motor and the continuous entry of materials, the equipment can achieve mass production.

Roll extrusion granulators are widely used in multiple fields, including but not limited to:
1. Fertilizer industry: used to produce high, medium, and low concentration specialized compound fertilizers for various crops, including ammonium chloride, ammonium sulfate, organic fertilizers, inorganic fertilizers, biological fertilizers, magnetic fertilizers, etc.
2. Pharmaceutical industry: used for producing capsule filling particles, pharmaceutical intermediates, etc.
3. Chemical industry: used for the production of pigments, detergents, catalysts, inorganic salts, chloroisocyanuric acid, bleaching powder, pesticides, oxides, etc.
4. Feed industry: used for producing various feed pellets.
5. Industrial recycling: used for processing industrial recycled dust materials, such as iron casting factory dust, lead, zinc, aluminum dust, converter dust, filter dust, grinding dust, etc.

Zhengzhou Fude Machinery Equipment Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of organic fertilizer processing equipment. Our production equipment includes: disc granulator, roller extrusion granulator, trough type turner, track turner, disc turner, vertical crusher, powder fertilizer production line, granular fertilizer production line, etc.
We are committed to providing customers with efficient, stable, and reliable pre-sales and after-sales services.
