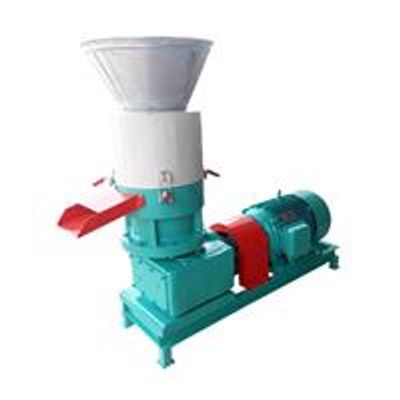

Amisy - Model PLM 400 -Roller Driven Pellet Mill

This electric flat die pellet mill has roller-driven design which ensures more powerful compression on the materials, so it can process hardwood materials into biomass pellets more easily than other die-driven pellet mills. With a little large capacity 400-500 kg/h, it is an ideal choice for you to start a pellets business at home or workshop. High efficiency and low power consumption, our roller-driven pellet mill can make profits quickly for you.Roller Driven Flat Die Pellet Mill Working PrincipleThe main parts of flat die pellet mill are two rotating rollers and a stationary pellet die. When the machine works, the rotating roller will press material into the die hole of the stationary die. There are two highlights of pellet mill driven by rotating rollers. One is that this design can prolong pellet mill service life, the other is it make wood pellets more smooth and solid.

1. Scientific roller-driven design ensures more powerful compression on the materials, thus this pellet mill can produce high quality pellets from almost all the biomass materials you can find, including the hardwood.
2. Electric flat die pellet mill is driven by electric motor which makes it more energy-saving and environmentally friendly.
3. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break
4. Quick disassembling type precisely-cast die clamp is adopted, able to change new die and rollers fast and conveniently according to your needs.
5. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.
6. Suitable for small wood pellet business as well as home use.

There are two different flat die pellet mills. One is the regular mill that is die driven (die turns) and roller stationary. This one was originally made to make feed pellets out of soft material. It is geared higher and runs faster than the wood mills. It makes soft material faster and wood material slower. The other pellet mill is roller driven (roller turns) and die stationary. This is the new design. So, which pellet mill should you get to make wood pellets?
Roller-driven pellet mill works much better for wood pellets. In a roller driven machine, the rollers turn and the die is in a fixed position. This is geared lower and makes wood material much faster and soft material slower because it runs slower. A great electric pellet mill is the AMSPLM model from flatdiepelletmill.com. It comes in the  AMSPLM400 pellet mill. This is a rugged electric wood pellet mill which is not picky about what you put into it. The rollers turn and the die is fixed. It is geared lower to make wood pellets out of sawdust, wood chips, shavings, etc., but will make all of your other materials such as hay, straw, grasses, corn stalk, etc. The rollers and bearings are heavy duty and outlast other pellet mills by up to 4 times.
