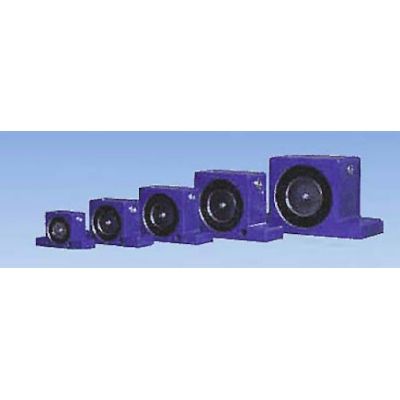

Roller Vibrators R Serie
For emptying hoppers, agitation of small particles, moving of fine powders, compactation of plastic and concrete moulds... For easy mounting two horizontal and two vertical holes. Very high centrifugal forces. An air silencer incorporated.
Most popular related searches
air intake
powder compaction
laboratory testing
forced air
exhaust silencing
steel roller
exhaust silencer
pneumatic roller vibrator
centrifuge
vertical centrifuge
- Extruded aluminum alloy body
- Cast iron liner
- Steel alloy roller
- Plastic end plates
- Vertical air inlet
- Horizontal air inlet 7Air groove
- Inlet jets
- Exhaust ports
- Exhaust diffuser
- Silencer plate
- Base mounting holes
- Lateral mounting holes

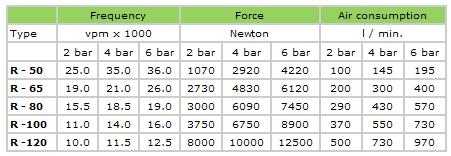

Data obtained with a Kistler 3-axis dynamometer on a heavy laboratory test block and displayed by Kistler control monitor (COMO). Frequency and force will decrease on a less rigid mount. Specifications subject to change without notice or obligation.
Maximum temperature 140 ºC = 280 ºF
Noise level range 75 to 100 dBA
