Hürner Luft- und Umwelttechnik GmbH

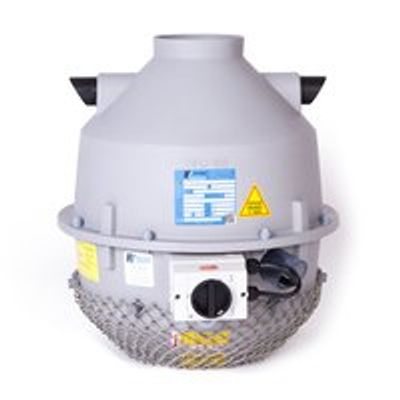

HLU - Model HF D 15/17 -Roof Fans
Can be used in all applications with small and medium air volumes. Ideal for extraction from fume hoods in buildings without a ventilation plant. Optionally suitable for installation in and extraction from ATEX zone 2 and 1. Also available with EC motor.
Most popular related searches
rainwater drainage
fume hood
ATEX zone 1
drainage design
fume extraction hood
building ventilation
extraction hood
rainwater
drainage installer
fume extraction
- volume flow from 50 to 3500 m³/h
- at a maximum pressure difference of 1400 Pa
- available in 6 nominal diameters from 110 to 315 mm intake diameter
- Volume flow ;50 to 3.500 m³/h
- Pressure difference ;1.400 Pa
- Nominal diameters ;6 nominal diameters from 110 to 315 mm
- Operating temperature ;0 – 40°C
- Housing material ;UV-resistant PEs, PE-el
- Impeller material ;PPs, PPs-el
- Drive system ;direct drive
- Atex ;optionally suitable for installation in and extraction from ATEX zone 2
- Design ;fitted as standard with repair switch or explosion-proof terminal box
- Connection options ;flange
- corrosion resistant
- weatherproof
- safe rainwater drainage
- compact design
- easy installation on flange
- comprehensive range of accessories
- motor mounted outside the airflow
- use of different motors (explosion-proof motors) possible
