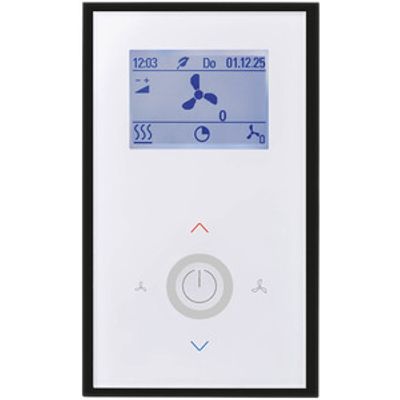

Thermokon - Model JOY FC 5DO Temp White -Room Controller

SHARE

Fan coil thermostat, Room controller temperature | Switch contact | Room Climate Control, Measure values 2x contact NO, 1x heating, 1x cooling, load max. 500 mA (240 V, Triac), 3x contact NO, fan stages, load max. 3 A.

Most popular related searches
temperature switch
climate monitoring
laboratory thermostat
digital temperature controller
temperature monitoring
  •
  • Application/type : Fan coil thermostat, Room controller
  • Purpose : Room Climate Control, Measure values
  • Measured values : temperature
  • Interface : Switch contact
  • Functions : fan control relay, heating + cooling relay, change-over, integrated PI and two-/three-position controller, frost protection, window/door monitoring, presence, MSG-server for 2nd zone
  • Operating functions : setpoint adjustment temperature, fan stage adjustment, standby/presence detection
  • Operating elements : 5 touch buttons
  • Configuration : uConfig
  • Output switch contact : 2x contact NO, 1x heating, 1x cooling, load max. 500 mA (240 V, Triac), 3x contact NO, fan stages, load max. 3 A
  • Input : 1x input for NTC10k or floating contact, 1x input for potential contact (230 V ~), 1x input for floating contact
  • Operating range temperature (°C) : 0..+50
  • Operating ranges temperature (°C) : 0..+50
  • Output signal temperature : 0..+50 °C
  • Operating range humidity : max. 85% rH non-condensing
  • Accuracy temperature : ±1 K (typ. at 21 °C), within default measuring range
  • Power supply : 85..260 V ~
  • Power consumption : max. 2,5 VA (260 V ~)
  • Display : LCD 60x44 mm, 240x160 px, backlight cold white
  • Enclosure : PC, cover glass
  • Colour : pure white
  • Protection (IP) : IP30, according to EN 60529
  • Connection : terminal block, max. 1,5 mm², inputs max. 1,0 mm²
  • Mounting : in standard EU box (Ø=60 mm, depth min. 45 mm)
  • Packaging length (mm) : 196
  • Packaging width (mm) : 162
  • Packaging height (mm) : 37
  • Device length (mm) : 140
  • Device width (mm) : 78
  • Device height (mm) : 35
  • Weight (g) : 195
