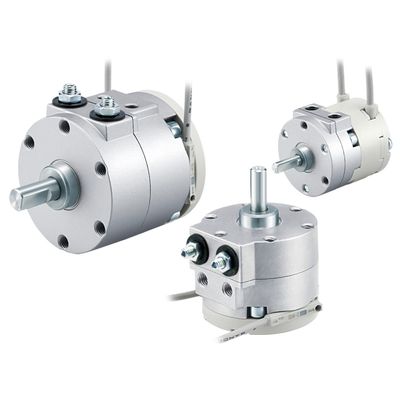

SMC Corporation - Model CRB/CDRB -Rotary Actuator

A double vane type has been added for sizes 10 to 40. [New]. Features a compact body with a built-in angle adjustment unit and auto switch unit (Size: 20, 30, 40). Overall length: 44% shorter, Weight: 48% lighter. Piping, wiring, and angle adjustment can be performed on the same side for easier mounting. Easy-to-adjust start and end positions with the angle adjustment bolts (as standard). The position of the chamfered portion of the shaft can be easily checked usingthe rotating angle indicator. (Only for the CDRB with auto switch). Each of the units below for the CRB2 series can be mounted to the CRB series.
