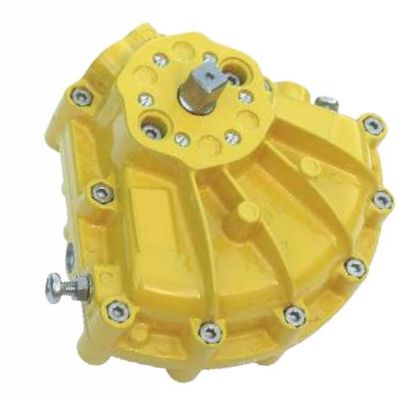

Gosco - Model 05 -Rotary Actuator

• Fail safe spring return units - clockwise or counter clockwise see pages 27-29
• Limit switch boxes for open/close indication - various switches for hazardous areas see pages 31-34
• Integral solenoid valve see page 38
• AP pneumatic positioner -full range of options see pages 41/42
• EL electropneumatic positioner - full range of options see pages 39/40
• P3 on/off positioner- full range of options including hazardous area see pages 43-45
• Clear Cone position monitor see page 38
• 180° model see pages 51/52
• Female drive and mounting details to DIN 3337 and ISO 5211 see pages 57/58
• ISO adaptor see page 26
• Spring to centre see page 50
• Geared manual override see page 55
• Code identification see page 30
• Torque outputs see pages 6-8
• See pages 57-60 for English dimensions and dimensions of spring options
• High temperature / Low temperature options see page 5

Output Torque
440 Ibf ins/50.5 Nm at 100 psi/7bar

Angle of Travel (adjustable)
84°-100° (restricted travel versions available)

Displaced Volume
6.9in3/113cm3

Finish
Epoxy stove enamel

Weight
2.73 lb/1.24 kg (excluding coupling)

For further information see General Specification on page 5.
