Atlas Wedge - Model -Rotary Drum Screen

Wedge Wire Type Drum Screen

• Drum screen with radial flow
• Slot size -0.5 mm
• Effective length of screen -150 mm
• Connection -2" ANSI 600# RF
• Material - stainless steel
• Collapse pressure -55 bar
• FOTI: Filtration Outside To Inside

Rotary Drum Screens for the Sugar Industry

Other rotary drum screens we supply:

Wedge Wire DSM Screen for Screen Rotary Filter

• Drum dimension 1800 x 6000 mm
• Gap : 0.7 mm
• Material : SS304

Rotary Drum Screen for cane sugar

• Type Screen : Wedge Wire
• Screen Size : 0,5mm
• Model : Drum (Circle)
• Lengh: 4800mm
• Dia : 1820mm
• Liquid : Cane Sugar Fluid
• Material : Stainless Steel 304

Rotary Drum Screen Plate (SQUARE HOLE)

• Material : SUS 316L
• Size (T) : SHEET 3MM
• Size +/- 1450 mm X 1082 mm, side hole 8 mm
• Size +/- 1682 mm X 1126 mm, side hole 10 mm

Micron Stainless Steel Filter Screen for Rotary Drum Filter

• 32 micron stainless steel filter screen
• 3 foot x 7 foot panel

Details of the tubes:

• Material: AISI 304 L
• length:1.000mm
• outside diameter:630mm
• profile (construction): 22ss/ø 50x100
• slot:1mm
• filtration: FOTI

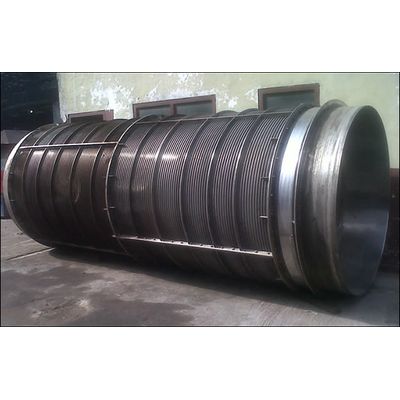

Wedge Wire Rotary Trommel Drum Screen - Screen for Cane Juice

• Rotary trommel drum screen made of SS 304 wedge wires with axial slot aperture 0.6 mm. Inward flow of cane juice.
• Size dia 1800 mm ID x length 4500 mm
• In two cylindrical half sections having proper reinforcement
• 75 x 10 mm end flanges to be bolted by 14 mm dia bolts.
• Used for sugar mills in Pakistan.

Wire Screen for Rotex Screeners /rotex sieve frame

• Export to Philipine
• Rotex Screen, SS Wire 59" x 154", 12 mesh, 0.023" diameter x 1.65mm with Eyelets,
• Topdeck SS430 with edging and grommets.
• Rotex Wire Screen, 59" x 133", 12 mesh with Eyelets Top Deck SS430.
• Rotex Sieve Frame/Spacer Asy. 15mm diameter, perforation Top Deck for Model 523A, Serial #1X8321.
• Rotex Sieve Frame/ Spacer Asy. 15mm Diameter, perforation Top Deck for Model 8522DAAAMM

Trommel Drum Rotary Screens
Scope of supply:

• Trommel Drum Set:
• Made up / consist of 2 x 180° segments.
• Each segment (S/D) 2000mm long (wire) x 180° x 1800mm I/D.
• Aperture 1.0mm.
• Using #69M Wedge Wire / SR475 Support rods.
• Each fitted with 65mm x 10mm SS end rings and joiner bars, as well as stiffening hoops and axial bracing and gussets.
• Material grade 304SS

Trommel Drum Set:

• Made up / consist of 2 x 180° segments.
• Each segment (S/D) 2000mm long (wire) x 180° x 1800mm I/D.
• Aperture 1.2mm.
• Using #69M Wedge Wire / SR475 Support rods.
• Each fitted with 65mm x 10mm SS end rings and joiner bars, as well as
• stiffening hoops and axial bracing and gussets.
• Material grade 304SS.

SS316 Perforated screen for Screen Rotary Filter Parts

• Thickness: 0.35mm, 20% open area, 0.5 hole diameter
• Wide: 500mm x length: 3050mm
• Max grip / border: 5mm
• Use for: screen rotary vacuum filter
