Yubo - Rotary Drum Screens

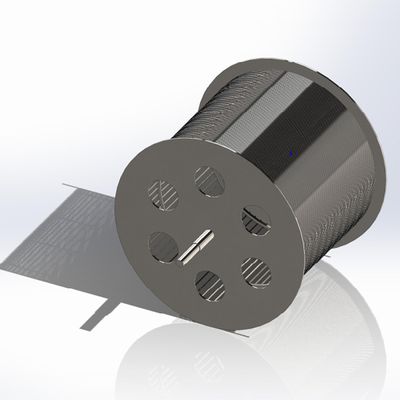

Wedge Wire Rotary Drum Screen Filter is the best solution for the fine treatment of industrial and domestic wastewater. The drum screen filter is one of the most demanded types of equipment for the mechanical treatment of industrial and domestic wastewater. The high efficiency of the screen is based on the principle of its operation, which makes it possible to remove even complex fibrous impurities such as wool and hair from drains. The closed design and high capacity of the screen in a compact enclosure make it an indispensable solution for small and medium-capacity wastewater treatment plants. Low energy and flushing water consumption is other reasons why this type of screen is so often found in modern energy-efficient wastewater treatment plants.
- Available in multiple size ranges for different production rates
- Low horsepower requirements save on energy consumption
- Gentle on contaminants rejects more debris with minimal containment breakdown
- Low maintenance design with minimal moving and vibrating parts increases uptime
An advanced device for separating solid elements from the wastewater stream. Flow is directed into a slotted drum. Water flows through the drum and solids are scrapped outside. The drum rotates under a set of nozzles using water pressure to clean the drum and the slots.
- Throughput, m3/h: 100 – 900 or custom
- Clearance, mm: 0, 25 – 10 or custom
- Drum diameter,length,Width: custom
- Material: wedge wire, stainless steel or custom
- Flushing water pressure, bar: 4 – 5
Area of application of Wedge Wire Rotary Drum Screen Filters:
- Wastewater treatment for the food and processing industry.
- Treatment of wastewater with a high content of solids including fiber’s, wool, feathers, and films.
- Industrial and domestic wastewater treatment plants.
- Rotary drums with internal inflow are perfect for all sorts of industries, ranging from food processing to PET recycling.
