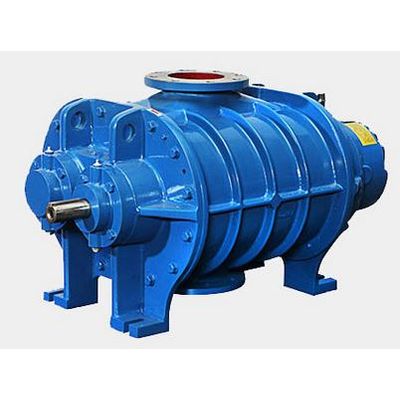

Kay - Model KE Series -Rotary Positive Displacement Twin Lobe Compressors
The lobes are 8 in shape. Roots air blower / twin lobe compressor is a positive displacement, constant volume machine to operate against varying pressures. With each revolution, the compressor delivers a metered amount of air measured at inlet conditions.
Most popular related searches
water cooling
cooling water
water blower
air monitoring
blower
root blower
well water
air intake product
air monitoring system
rotary lobe compressor
- This series covers the blowers from 36 AC to 615AC.
- KE series was developed during the early days of Kay Engineering, hence called as KE Series Blowers.
- Series covers the air cooled as well as water cooled blowers. Above 7000mmwg water cooled blowers will be supplied.
- Capacity for KE series Blowers ranges from 60m3/hr to 1431m3/hr with pressure application from 1000mmwg (0.1kg/cm2) to 10000mmwg (1.0kg/cm2)
- Well suited for V-belt as well as direct coupled drive.
- Material of construction of the casing and lobes for all blowers in this series is C.I.F.G.-260 conforming to IS: 210.
