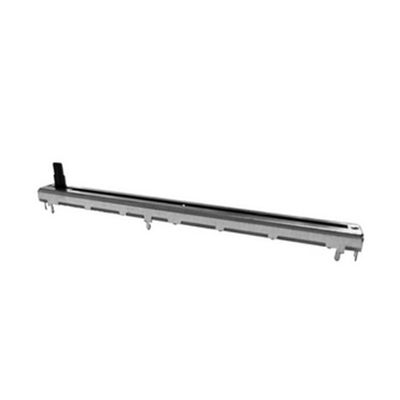

Alpha - Model RA0021WF -Rotary Potentiometers
Application : Audio, Home appliance, Lighting control, etc.. Feature : Smooth slide feeling..
- Operating Temperature Range -10 °C~70°C
- Standard Resistance Tolerance ±20%
- Insulation Resistance 100 MΩ Min. at DC250V
- Dielectric Strength 1 minute at 300V AC
- Travel Distance 100mm
- Operating Force 30~250 gf.cm
- Sliding Life 15,000 cycles
