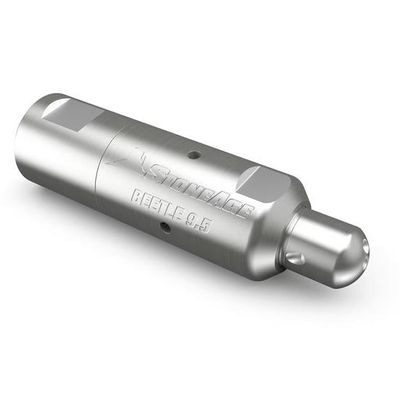

StoneAge - Model Beetle 9.5mm 15k / 1000 bar -Rotary Sewer Nozzles for Pipe Cleaning
FromStoneAge, Inc.
The Beetle nozzles are perfect for tube cleaning in various industrial applications. With their small diameter and short length, they can easily navigate tight curves in small diameter pipes, making them ideal for cleaning process piping, drain lines, u-tube bundles, and other small ID conduit with bends that may have been inaccessible in the past. These nozzles are specifically designed for use in heat exchangers, condensers, evaporators, and tube bundles.
Most popular related searches
pipe cleaning
sewer nozzle
drain lining
high-pressure cleaning
drain line
tube cleaning
sewer pipe cleaning
pipe lining
pressure cleaning
waterblasting
- Fits pipe sized from 0.47-0.63in (12-16mm)
- Specifically designed for flow range of 5-6gpm (19-26l/min)
- Navigates tight curves in small diameter pipes
- Low cost, low maintenance design
- Easy to pair with automated flex lance machines
These Beetle nozzles are specifically engineered for high-pressure waterblast cleaning, ensuring efficient and effective removal of contaminants. Their universal head and 1/16 NPT inlet provide optimal utility based on testing, analysis, and pressure loss limitations.
- Length1.4 in. / 35 mm
- Pressure Range8-15k psi / 550-1034 bar
- Flow Range5-6 gpm / 19-23 l/min
- Inlet Connection1/16" NPT (P1)
- Minimum Tube Size0.47 in. / 11.938 mm
- Maximum Tube Size0.63 in. / 16.002 mm
- Diameter0.37 in. / 9.5 mm
- Max Pressure15k psi / 1000 bar
- Max. Water Temp250 °F
