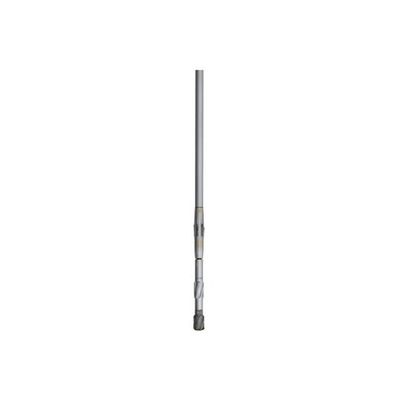

Revolution - Model V -Rotary Steerable System

The tool has a short, compact design that reduces the complexity of rotary-steerable drilling technology and places critical loggin&while- drilling (LWD) measurements close to the bit Available for use on nearly any rotary rig, the Revolution V RSS actively measures and corrects any deviation to maintain a vertical wellbore Weatherford wellsite directional drillers monitor wellbore survey information, but direct input is not required for automatic corrections.

The Revolution Heat RSS is available in multiple sizes ranging from 5-3/4 to 18-1/4 in. The 4 3/4-, 6 3/4- and 8 1/4-in. models are available with either standard stroke or reduced stroke (RS).

• Maintaining a vertical wellbore
• Performing pad drilling

• The rotary-steerable system (RSS) enables reaHime corrections that
• maintain a vertical wellbore, which eliminates the need for additional runs. The point-the bit design improves hole quality, which increases
• cuttings removal speed and enables smooth casing and liner running.
• On-the-fly downlinking reduces nonproductive time and enables
• precise steering control.
• On-board sensors measure vibrations, whirl, and stick-slip, which
• enables real-time mitigation strategies.
• The pivot stabilizer is optimized for vertical-hole dynamics
• A motorized option is available to further improve rate of penetration.
• The RSS is compatible with all Weatherford LWO systems.
• Sensors monitor near-bit inclination in real time.
