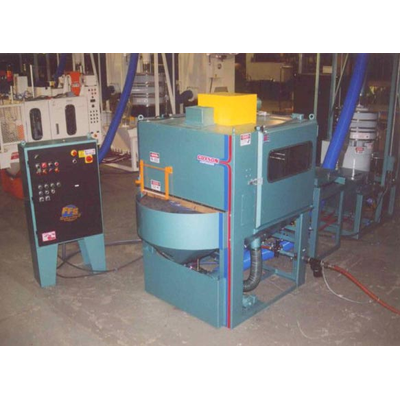

Guyson - Model R-800 and R-900 -Rotary Table Blast Systems
Continuous table rotation in the R-series machines keeps an operator busy turning, unloading and loading parts, and it can be a very productive method of blast processing. Our R-800 has up to 8 suction-blast guns and a table diameter of 36 inches in a blast cabinet with a footprint of 50 × 64 inches. The R-900 cabinets have up to 12 suction guns, a table diameter of 42 inches and occupy 55 × 62-inch area of floor space.
In R-series automated blast machines, blast treatment and airwash is performed as components rest around the perimeter of the continuously rotating table, which is positioned to extend out the front of the cabinet. The adjustable-speed table may be fitted with part-holding baskets or simple fixtures. Multiple blast guns are rigidly bracketed in fixed position or mounted on an adjustable oscillator or a rotary turret.
In RSSA-series machines, a single rotary spindle or table rotates the component at controlled and adjustable speed as it is exposed to blast from multiple nozzles. Programmed linear motion of the nozzles can be horizontal, vertical or multi-axis and is synchronized with component rotation to provide a repeatable automated processing routine.
