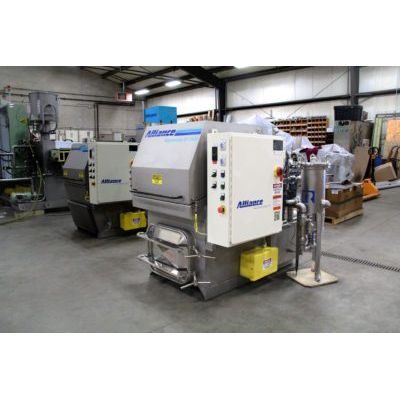

Alliance - Model Aquamate RT -Rotary Top Load Cabinet Washers

Alliance’s top load cabinet washers utilize a direct drive rotating table. Standard rotary table sizes include 24,” 30,″ 36,″ 42,” 54,” and 66″ diameters, but can be fully customized to suit specific applications.

The stainless steel door is hinged at the rear of the machine and includes dual operator handles. When open, the front edge of the door is beyond the center of the turntable, allowing parts to be loaded and unloaded by an overhead hoist. The door can be raised pneumatically for the RT-4200 and larger machines.

During the cleaning process, parts are rotated past multiple nozzles located above, below, and to the sides of the rotary table for fast and efficient cleaning.  After cleaning, the spray system automatically shuts off and the table continues rotating to allow for drainage. The cycle stops and parts are manually unloaded. Timers are provided for controlling wash cycle and drain time durations.  In addition, options such as exhaust fan systems, mist collection, oil coalescing, blowoff, etc. are also independently controlled by timers. Individual time control of cleaning functions provides flexibility for easy cleaning cycle customization.

Our rotary table cabinet washers include many standard features not found with competitors’ machines: Direct-drive turntables, tank clean-out doors, solution level control with low water safety shutoff, and internal debris rinsing. One unique feature of Alliance cabinet washers is a centerless bearing turntable. The turntable is supported at the circumference, eliminating the need for a center bearing. This prevents a cleaning blind spot and allows the operator to load parts anywhere on the turntable with uniform cleaning results.
