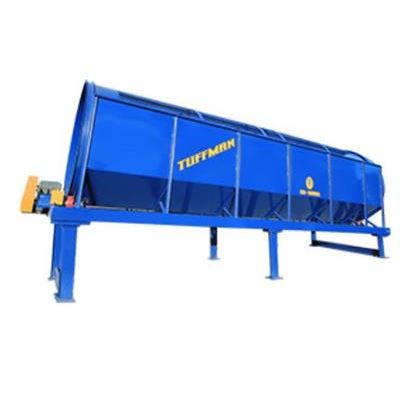

Tuffman - Model TT-830 -Rotary Trommel Screen
Tuffman 830 Rotary Trommel screens are excellent for excavation sifting and separating municipal solid waste, as well as sand, gravel, lumber mill by-products, municipal solid waste, debris, topsoil, glass, compost, rock, minerals, waste water, sludge, construction and demolition waste. They may be used individually or as part of a larger sorting system.
Most popular related searches
rotary trommel screen
trommel screener
trommel screen
stationary trommel screen
municipal solid waste
variable frequency drive
solid waste
rotary screen
solid municipal waste
worm gear reducer
Tuffman® Model TS830HD Heavy Duty Stationary Trommel Screen
- 8′ diameter x 30′ long drum (≈ 24′-8″ of screen length)
- Woven wire mesh screen, available in 3/8″, 1/2″, 3/4″, 1″ and 1 1/4″ sizes
- 6 (six) rows of 5″ tall flights
- Heavy duty frame with 4 (four) support legs at a 5 degree slope
- Drum discharge height 36″
- Trunnion/caster drive
- 10 hp 480/3/60 electric motor
- 25:1 shaft mounted gear reducer
Optional Items for the Tuffman® Model TS830HD Heavy Duty Stationary Trommel Screen
- Feed chute
- Feed conveyor
- Discharge chute
- Discharge conveyor
- Fines discharge chute
- Fines discharge conveyor
- Custom screen sizes
- Bolt-in screens
- Removable dust enclosure
- Cleaning brushes
- Custom discharge height
- Variable frequency drive
