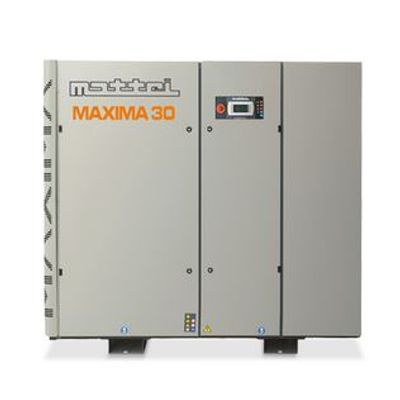

Mattei Maxima - Model 30 -Rotary Vane Compressors
In conditions requiring a constant, uniform supply of compressed air, Maxima 30 air compressors are the best solution to save energy. Maxima series rotary vane compressors are designed with particular focus on energy savings and environmental protection; they are specifically designed for those who need constant, steady compressed air for prolonged periods of time and for applications requiring compressed air at full capacity.
Most popular related searches
rotary vane compressor
compressed air
sound pressure level
pump system
cooling system
air quality control
Main technical features of the Maxima series:
- “Soft Start” to start the motor progressively, thus allowing a drastic reduction in the power used during this phase (available in the 55kW versions or higher);
- the speed of the pumping unit is only 1000 rpm;
- “Maestro XS” electronic controller to monitor and program the operation of the compressor, which can also be done remotely by connecting a PC. Thanks to its internal memory, Maestro XS remembers the setting and operation data, even without a power supply;
- a dual speed electric fan cooling system that senses heat changes to ensure constant internal temperature by increasing or decreasing the cooling air flow (available in the 55kW versions or higher).
- Max. Operating Pressure 8 bar(g) | 116 psig
- Max. F.A.D. 6,45 m3/min | 228 cfm
- Sound Pressure Level 5 dB(A)
- Power 30 kW | 40 hp
- Voltage 400 V
- Frequency 50 Hz
- Phases 3
- Length 1830 mm | 72 inch
- Width 960 mm | 38 inch
- Height 1670 mm | 66 inch
- Weight 920 kg | 2024 Ibs
