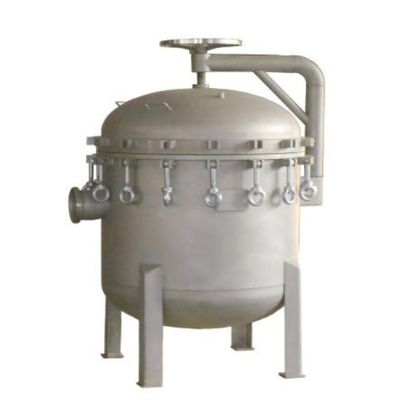

Suzhou-Kosa - Rotating Open Multi-Bag Housing

FromSuZhou KoSa Environmental Protection Co., Ltd.

Our user friendly design multi bag filter with construction from 3 bags to 24 bags to meet larger liquid flow rate requirement up to 1,000 m3/hr, all bag filter design in ASME VIII see VIII DIVI standard.

Most popular related searches

Rotation open cover design to save head space
Eliminate the outlet elbow connection, lower vessel height for easy operation
Easy operation, cost effective bag filter housing
For high volume, multiple applications
3-bag to 24-bag housing designs available
Flow rate 60-960 m3/h
Unique spring lifting cover opening mechanism
Individual bag locking to ensure perfect sealing
Design according toASME Div VIII section
Custom made order
Maximum operating pressure: 10bar
Maximum operating temperature: 160 Deg C with Viton seals
Material of construction: SS304, SS316 orcarbon steel
Surface finish: SS-bead blasted or mechanical polish, CS-painted

Suzhou-Kosa - Rotating Open Multi-Bag Housing

Features

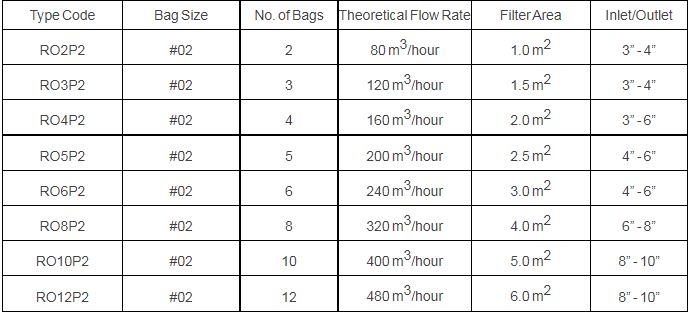

Specifications
