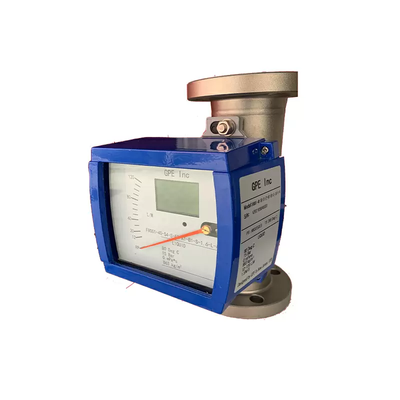

GPE - Model F8001 -Rotor Flowmeter
F8001 rugged metal tube variable area meters (rotameters) are ideal for high pressure, high temperature and other demanding flow applications where safety is a concern. Features include: globally-recognized approvals for use in hazardous environments; analog and digital LCD local display options, multiple process connection options; several avaliable materials of construction for metering of aggressive fluids and corrosion resistance; HART enabled 4-20mA output to provide for remote monitoring and control. The F8001's excellent repeatability makes it a good choice for batching applications. For versions without electronic output, no power supply is required. The F8001's low-pressure drop provides additional value by allowing for economical pump selection.
- Excellent low-flow performance
- Versatile design may be used for gas, steam, and liquids
- Low pressure loss for gas and steam applications
- Suitable for high pressure and high temperature applications
- Turn-down ratio of 10:1
- Local indication and intelligent remote LCD display
- Easy-to-read analog pointer style indicator
- Intrinsically safe & explosion proof for hazardous area applications
- Size: 15 ~ 150mm
- Measuring Range: Water (20?) 15 ~ 150,000 l/h
- Air (20?, 0.1013MPa) 0.7 ~ 1000 m3/h
- Temperature: Standard (E) -40 ~ +200?, PTFE: -40 ~ 80?
- High temperature (H): +200 ~ +400? 6.5 ~ 15.6 KPa
- Pressure Loss Pressure: Standard: 1.6MPa (DN65 - DN150) 4.0MPa (DN15 - DN50)
- High: 2.5MPa (DN65 - DN100) 6.4MPa (DN15 - DN50)
- Viscosity: 15m ~ 20 mm - < 30 CP
- 25mm ~ 40 mm - < 250 CP
- 50mm ~ 200mm - < 300 CP
- Top enter?Top exit
- Wetted parts: SS #304 standard, SS #316 optional Tantalum (flow tube) PTEE (flow tube)
- PTFE lining
- ANSI and DIN-type avaialble
- Flanges Accuracy: ±1.5%(Standard)
- ±2.5%(PTFE liner)
- Repeatability: ±0.5% of reading
- Signal Output: 4-20mA (2-wire)
- Local Display: Mechanical Indicator (standard)
- Digital Display: Rate 0 ~ 50000
- Total: 0 ~ 99999999 (with decimal)
- Power Supply: Standard:24VDC,two
- wire4~20mA(18VDC~30VDC)
- 3.6VDC @ 5.2 AmpHours Lithium
- Approvals: Isolation: Exd ? CT5 Intrinsic Safety: Exia?C
- Alarms: High / Low limit alarm maximum 1A @ 24VDC
- Data Storage: EEPROM (up to 10 years)
- Flow Orientation: Top enter/top exit, Standard
- Bottom enter/Top exit
- Right enter/Left exit
- Left enter/Right exit
- Protection: IP 67
- Housing Material: Aluminum
- Cable Connector: M20x1.5 or ½" NPT
