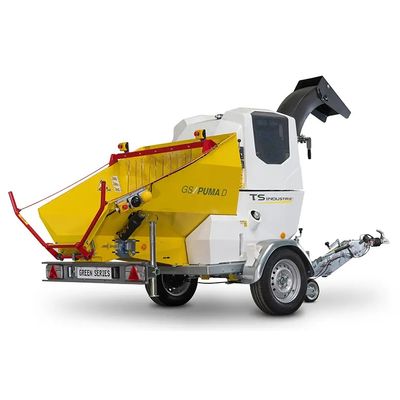

TS Industrie - Model GS/PUMA D -Rotor Shredder
The rotor shredder GS/PUMA D has established itself in this class. Its powerful KUBOTA V1505 diesel engine with 25 hp drives the patented POWER MIXED ROTOR with 6 blades and 12 hammers. The average output is a considerable 27m³/h and a maximum trunk diameter of 16 cm. The operating comfort in daily use is characterized by a 160 cm wide hopper, a 40 cm wide toothed feed belt, a hydraulic clutch, electric control on both sides, a height-adjustable drawbar and the proven
TS PILOT SYSTEM with three differently configured work programmes.
Most popular related searches
- REF : GSPUMAD
- Our bestseller with all its diversity - robust and powerful
- Diameter up to 16 cm
- Engine capacity/Number of cylinders: 1498 4-Cyl.
- Engine: Kubota V1505 25 hp/18,5 kw
- Fuel: Diesel
- Fuel consumption (l/h): 3,9
- Fuel tank capacity (l): 32
- Dimension working position (mm): 4370 x 1690 x 2360
- Average performance (m³/h): 27
- Machine weight (kg): 1380
- Max. diameter (cm): 16
- Clutch: Hydraulic clutch
- Rotor weight (kg): 150
- Gross vehicle weight chassis (kg): 1400
- Width feed roller (mm): 400
- Diameter rotor (mm): 560
- Number of hammers: 12
- Width feeder belt (mm): 400
- Number of knives: 6
- Diameter feeder roll (mm): 340
- Height funnel (mm): 2300
- Turnable discharge chute: 180°
- Dimension funnel (mm): 1600 x 1350
- Chock/support: Series/Series
- Tire size: 165R13C
- Number of axes: 1
- Height funnel (mm): 750
- Hoods: Safety hood made of Polyester resin
