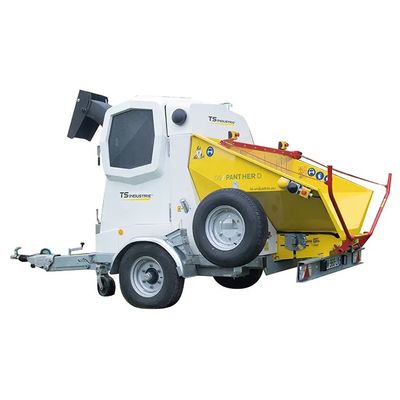

TS Industrie - Model GS/PANHTER D -Rotor Shredder
The rotor shredder GS/PANHTER D combines productivity and comfort and increases the cost-effectiveness of your operations. Equipped with the 56 hp KOHLER KDI 1903 TCR direct injection with PDF. The POWER MIXED ROTOR with a diameter of 56 cm combines 12 hammers and 6 blades. A weight of 150 kg provides an enormous flywheel mass to shred all types of wood and green waste up to 19 cm and an average output of 38 m³/h. High ease of use: Hopper open and 160 cm wide with a 50 cm wide and toothed feed belt, hydraulic safety clutch, braked chassis, drawbar by means of a central crank without tools, height adjustable, electric control on both sides, TS PILOT SYSTEM with three differently configured work programmes. The GS/PANTHER D combines versatility, performance and economy for daily professional use.
- REF : GSPANTHERD
- A real power package that combines productivity and comfort to increase cost-effectiveness during work
- Diameter up to 19 cm
- Engine capacity/Number of cylinders: 1903 3-Cyl.
- Engine: Kohler KDI 1903TCR V 56 hp/42 kW
- Fuel: Diesel
- Fuel tank capacity (l): 50
- Dimension working position (mm): 4510 x 2020 x 2360
- Average performance (m³/h): 38
- Machine weight (kg): 2050
- Max. diameter (cm): 19
- Clutch: Hydraulic clutch
- Rotor weight (kg): 150
- Gross vehicle weight chassis (kg): 2200
- Width feed roller (mm): 400
- Diameter rotor (mm): 560
- Number of hammers: 12
- Width feeder belt (mm): 500
- Number of knives: 6
- Diameter feeder roll (mm): 340
- Height funnel (mm): 2330
- Turnable discharge chute: 180°
- Dimension funnel (mm): 1600 x 1620
- Chock/support: Series/Series
- Tire size: 275R14C
- Number of axes: 1
- Height funnel (mm): 760
- Hoods: Safety hood made of Polyester resin
