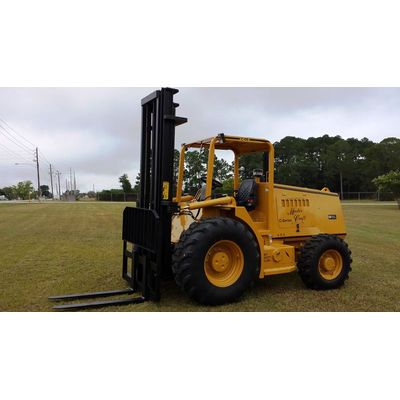

Master Craft - Model C/M-10-10106, C Series -Rough Terrain Forklifts
The C-Series 2WD and 4WD rough terrain forklifts are made specifically for off road industrial applications. The C-Series 5,000 thru 12,000 lb rough terrain forklifts are powered by the Caterpillar 416E tractor loader backhoe power module. The engine is a C4.4 direct-injected liter turbocharged and charge air cooled engine coupled with a Caterpillar 4 x 4 fully synchromesh transmission, Caterpillar drive axle, and both 2WD and 4WD models comes with a Caterpillar steer axle.
The C-Series 14,000 thru 20,000 lb rough terrain forklifts are powered by a Caterpillar C4.4 direct-injected turbocharged and charge air cooled engine.
All Master Craft forklifts have a 12 month or 2000 hour warranty from defects in material and workmanship. The Caterpillar power train module in the 5,000 thru 12,000 lb forklifts is warranted through Caterpillar by a 2 year or 3000 hour warranty. The 2 year or 3000 hour warranty applies to the engine only for the 14,000 thru 20,000 lb rough terrain forklifts.
- Lift Capacity @ 24" LC: 10,000 lb
- Mast Height Range: 10-21`
- Engine: Caterpillar 416E Tier 3 C4.4 DITA 4 cyl. diesel charge air cool turbo charged engine
- HP: 96
- Engine Capacity: 4.4 liters
- Transmission: Caterpillar 416E fully synchromesh 4x4 power shuttle transmission with torque converter and column mounted electrical fwd./rev. control.
- Drive Axle: Caterpillar 416E inboard planetary drive axle with hydraulic activated wet disc brakes with independent park brake (disc caliper) hydraulic actuated differential lock
- Wheel Drive: 2WD
- Standard Mast Tilt: 38F-9R
- Standard Carriage: 60"
- Total Mast Side Shift: 6"
- Steer Axle: Caterpillar 416E steer axle 2WD
