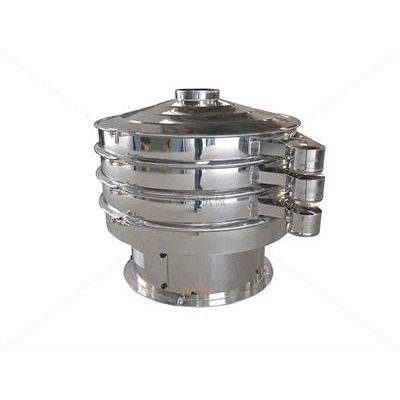

Round Stainless Steel Vibrating Screen
The circular vibrating screen is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the net quickly. It is fully enclosed and suitable for screening and filtering of particles, powder and mucilage.
- Fully enclosed structure, no slurry overflow, good environmental protection
- The direction of the exit can be adjusted freely by 360 degrees. The impurities and coarse and fine materials are automatically discharged from different nozzles.
- Equipped with automatic cleaning device (bouncing ball device), it can effectively eliminate the blockage of the mesh and improve the screening efficiency.
- The screen is tightly tensioned, 304 stainless steel material, long service life: unique screen structure, convenient for loading and changing the net, only 3-5 minutes.
- It can be installed in single layer or multi-layer combination, and divide the materials into 2-6 levels at one time.
- The contact parts with the materials are made of stainless steel 304, which is clean and hygienic and meets the food requirements.
The circular stainless steel vibrating screen, also known as the vibrating screen, is a vibration source driven by a vertical vibrating motor. The upper and lower ends of the vibrating motor are equipped with an eccentric weight to transform the rotating motion of the vibrating motor into horizontal, vertical and inclined. Three-dimensional movement, and then pass this movement to the screen surface. Adjusting the phase angles of the upper and lower ends can change the trajectory of the material on the screen surface.
