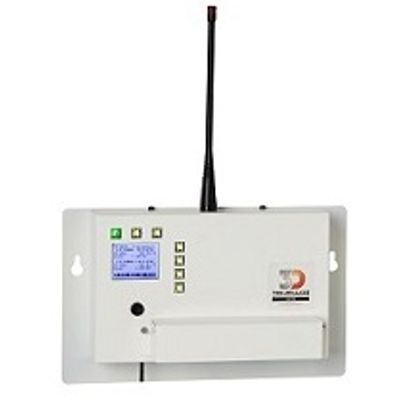

3D TempulogModel T4X4 -RTD/Thermocouple Web Based Data Logger

SHARE

This simple to install and commission data logger offers continuous logging with & without mains power.  With the added functionality of automatic SMS & Email on power failure and automatic Email reports including PDF files.  Reports can be in graphical or tabulated format.  The alarm is active until an operator acknowledges and this unit is BRD, CPA, MHRA & CFR Park 11 compliant. This device can monitor up to 4 temperatures, 4 4-20 mA signals and 4 digital inputs. it boasts a visual and audio built in alarm, with easy connectivity via ethernet connection. Temperature range -196°C to +1200°C.

Most popular related searches
  • Part Number T4X4
  • 4 Channel PT100 Class A 4 wire input or 4 channel thermocouple type K
  • Optional local ambient temperature and relative humidity
  • Resolution: 0.1C
  • Accuracy: +-0.3C
  • Operating range: -150C to 300C P100 or -100C to 500C type K thermocouple
  • 4 Channel 4-20 mA, 15 volts supply available
  • 4 Volt-free relay contacts inputs
  • LCD display & Joystick Control
  • Change over alarm relay
  • Alarm buzzer and ultra-bright alarm LED
  • Power outage SMS
  • Daily system Ok SMS
  • Built-in GPRS connection
  • Built-in SMS and Email alarms
  • Continuous logging without mains power
  • Ethernet connection
  • 24 hours battery backup operation
  • Dimension: HWD 150 mm x 245 mm x 42 mm
  • Weight: 1.25 kg
  • Wall mounted steel enclosure
