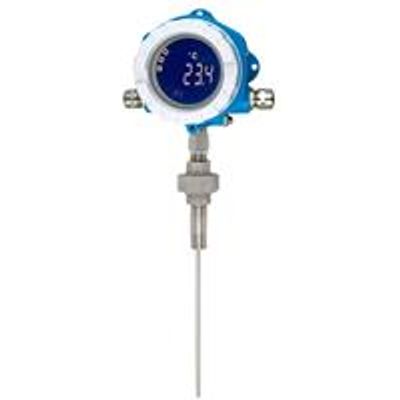

Omnigrad - Model S TMT142R -RTD Thermometer, Fieldtransmitter Display
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry. The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.
-
HART® protocol for operating the device on site using handheld terminal (DXR375) or remotely via the PC
-
Illuminated display, rotatable
-
Single Pt100 with 3 or 4 wires connection
-
Undervoltage detection responds immediately, output of falsified measured values is prevented
-
Highly accurate in entire operating temperature range
-
Approvals: ATEX (EEx i.a., EEx d and dust ignition-proof), CSA (IS, NI, XP and DIP)
-
Output simulation
The temperature assembly TMT142R from the Omnigrad S family is a compact resistance thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications.
The thermometer assembly TMT142R consists of a temperature RTD sensor insert (Pt100) and an electronic two-wire temperature transmitter providing a 4 to 20 mA output, configurable via HART® protocol.
-
Measuring principle
Resistance Temperature Detector
-
Characteristic / Application
US style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
threaded process connection
to use with thermowell
backlit display -
Terminal head
TMT142 - aluminium - fieldhousing w. or w/o. display
TMT142 - SS - fieldhousing w. or w/o. display -
Thermowell / protection tube
to use with thermowell
-
Insert / probe
mineral insulated (MI), flexible
-
Max. immersion length on request
up to 30.000,00 mm (1.181,10``)
-
Material protection tube/ thermowell
Not defined
-
Optional coating
Not defined
-
Process connection
male thread:
G1/2"
NPT1/2"
NPT3/4"
union nut:
NPT1/2"
M24x1.5 -
Operating temperature range
PT 100:
-200 °C ...600 °C
(-328 °F ...1.112 °F) -
Max. process pressure (static)
Depending on thermowell
-
Accuracy
class A acc. to IEC 60751
class AA acc. to IEC 60751 -
Response time
depending on configuration
t50 = 3 s
t90 = 7 s -
Integration head transmitter
yes (4 … 20 mA; HART)
-
Ex - approvals
ATEX II
Explosion proof -
Certification
Gost Metrology
