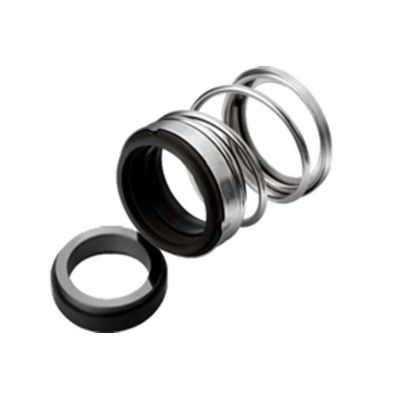

Alflaah - Model Type 02AS -Rubber Bellow Seal

Single Acting, Independent of Direction of Rotation. Face Materials – Carbon / Lecrolloy, Ceramic, Silicon Carbide. Metal Parts – SS 316, SS 304. Seal Elastomer – Nitrile, Viton. Applications – Water Pumps, Submersible Pumps. Operating Limits Shaft Diameter d1 :12….100mm. Pressure p : 08 bar (max). temperature : -20….+180°C. Speed: 3000 r.p.m.
