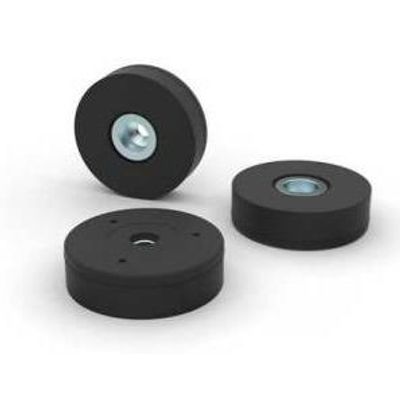

WZ Magnetics - Model NdFeB -Rubber Coated Magnets With Mounting Hole

SHARE

This group of neodymium rubber coated magnets have a center through hole or countersunk hole for mounting. They are made of rubber layer, steel plate and strong ndfeb magnet core. Different from normal rubber, we use the TPV rubber that can protect the working surfaces from scratches and it also features better durability than normal rubber when use for a long time. Via rubber coating, these rubber magnet mount offer not only waterproof function but also very good damage resistance that they are not easily broken. Meanwhile, the over-molded rubber coat is extremely durable, it enhances horizontal friction force and prevents it from sliding on the mounting surface.

Most popular related searches
low carbon
waterproofing
magnetic separation
coating equipment
protective coating
plate magnet

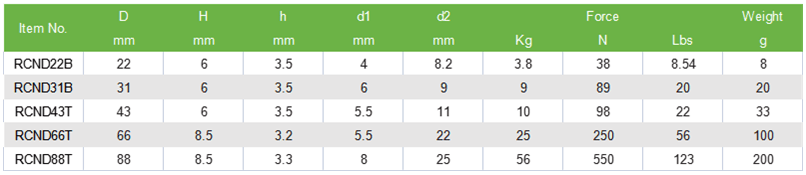

In addition to the durable waterproof rubber covering, inside strong NdFeB magnet is very powerful, by means of our engineer team’s special design with a magnetic conductive sheet, these waterproof magnet can produce range forces from3.8Kgs to 56Kgs.

What’s more, the Rubber Coated Neodymium Magnets are equipped with center through hole or countersunk hole. They can be easily mounted with a flat head screw or countersunk external threads to attach hooks or other accessories.

Notes:

  1. Colors: available colors Black, white, yellow, blue, Red, and other colors can be customized.
  2. Metal parts can be made of stainless steel or other coating, such as zinc coating, nickel coating or expoxy upon requirments.
  3. Customized types are accepted, there will be a minimum order quantity requirement, please feel free to contact us .
  4. We test the holding force of magnetic assembly by attaching it to a 20mm thick steel plate (low carbon steel with no coating) at room temperature and then pulling it slowly in vertical direction with the device that is sensitive enough to record the strength at the moment when the magnetic assembly is separated from the steel plate. This is to give you a reference while the actual holding force in real application could be different with the change of pulling direction, the thickness of the steel, surface treatment, etc.

NdFeB Rubber Coated Magnet With Mounting Hole is the ideal solution for applications where waterproof and corrosion-resistant magnets are required. It is a powerful, lightweight, and cost-effective permanent magnet made of a rubber coating to protect it from the environment. This type of fastening magnet has been widely used in various industries as it can be easily integrated into many existing surfaces or machines. Its screw hole allows easy attachment to various surfaces without any extra tools or effort. The NdFeB Rubber Coated Magnet With Mounting Hole is also highly versatile and can be used in multiple applications.

The Rubber Coated Pot Magnets can be widely used in fixing and holding applications. According to different demands, install different screws to fix the magnet through the middle bore. This structure can avoid damage and corrosion, and is suitable for indoor and outdoor applications, such as cameral mounting, cable mounting, light mounting, gun mounting.
